Catalytic Converter Brace Bracket Replacement (Lower, LCV)

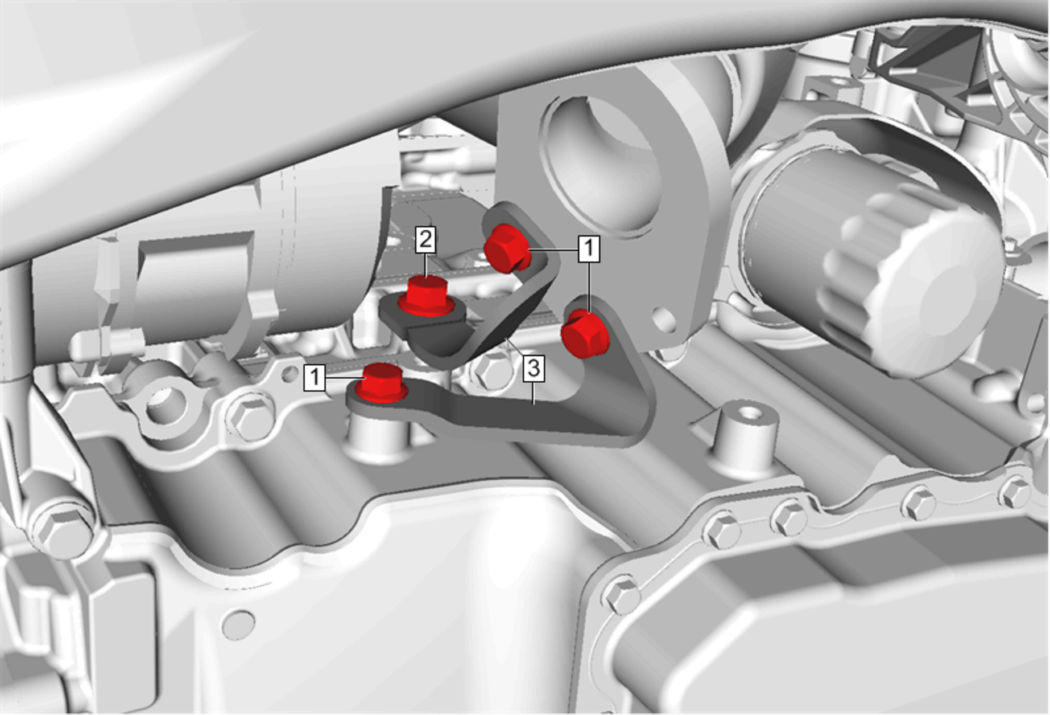

| Callout | Component Name |
|---|---|
| Preliminary Procedure Exhaust Front Pipe Replacement (LCV) |
|
| 1 | Catalytic Converter Brace Bracket Bolt [3x]
CAUTION:
Refer to Fastener Caution . Tighten 22 N.m (16 lb ft) |
| 2 | Catalytic Converter Brace Bracket Bolt Tighten 58 N.m (43 lb ft) |
| 3 | Catalytic Converter Brace Bracket [2x] |
