Installation Procedure

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

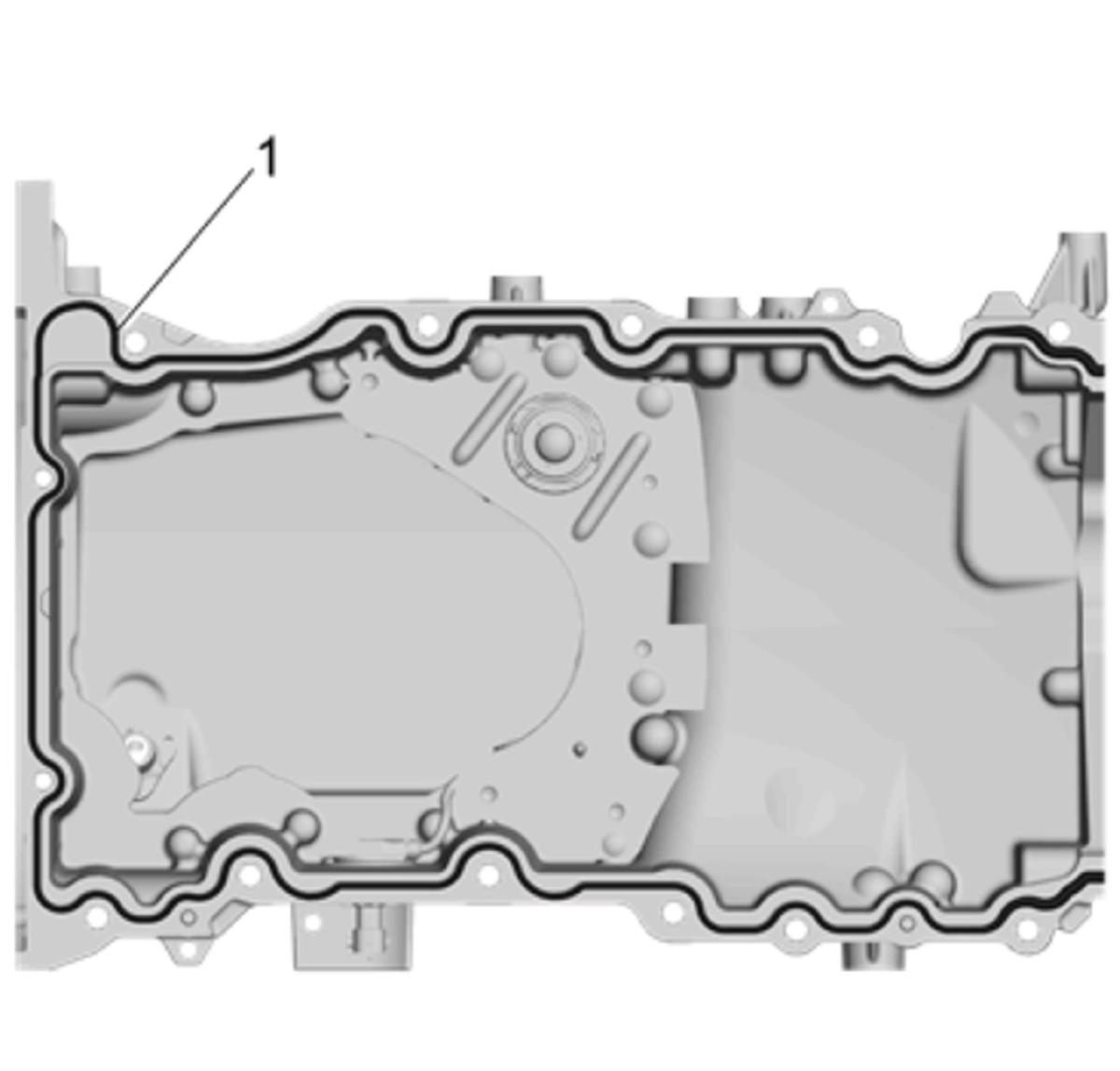

Oil Pan (2) - Install - Oil Pan Installation
Courtesy of GENERAL MOTORS COMPANY

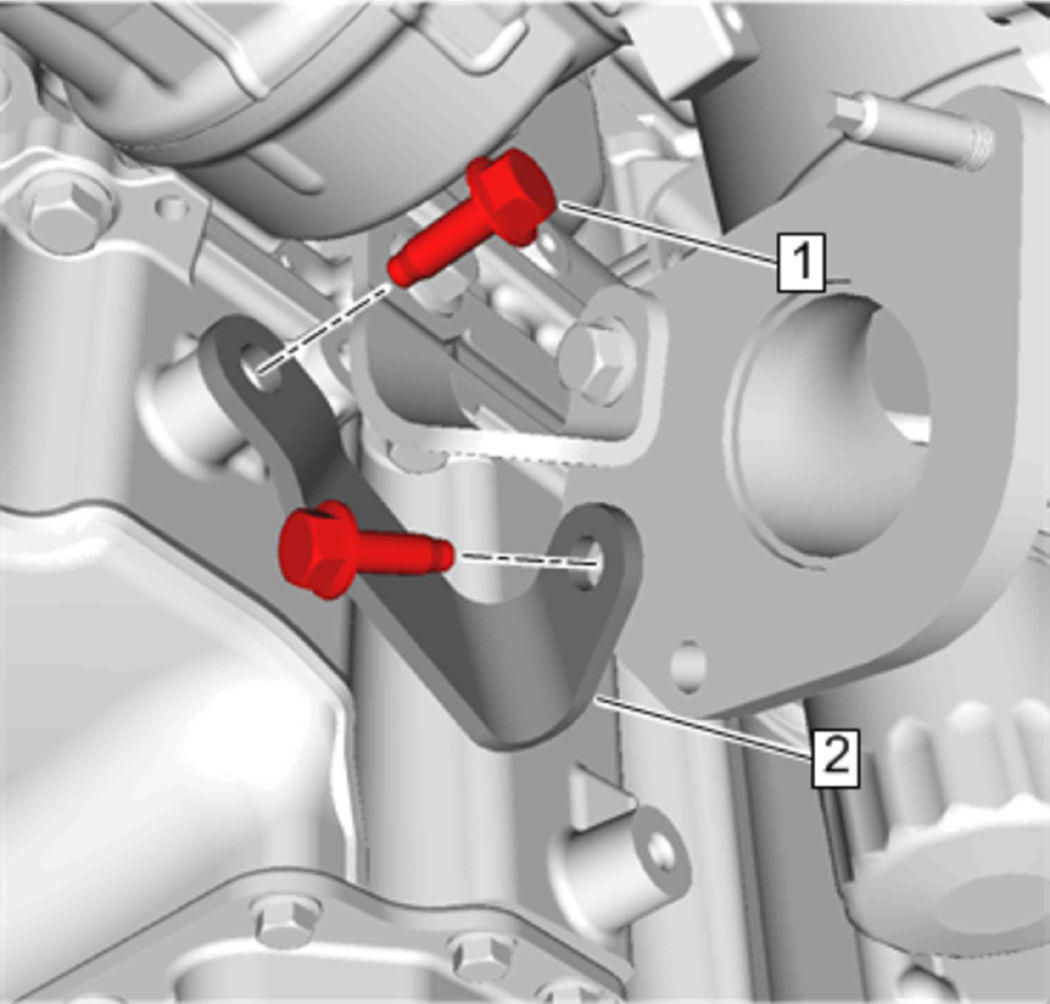

Catalytic Converter Brace (2) - Install - Catalytic Converter Brace Bracket Replacement (Upper, LCV) , or Catalytic Converter Brace Bracket Replacement (Lower, LCV)
Courtesy of GENERAL MOTORS COMPANY

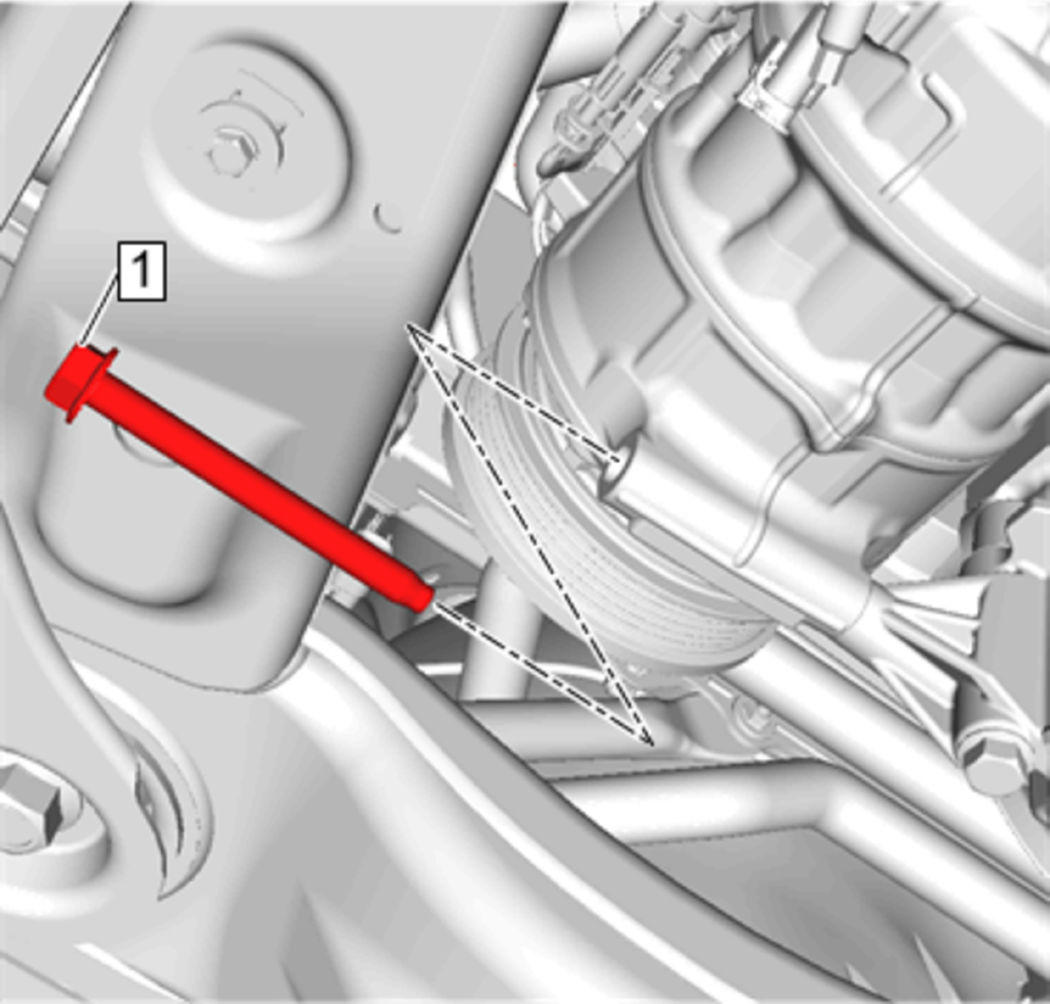

Air Conditioning Compressor Bolt (1) - Install - Air Conditioning Compressor Replacement (LCV)
Courtesy of GENERAL MOTORS COMPANY

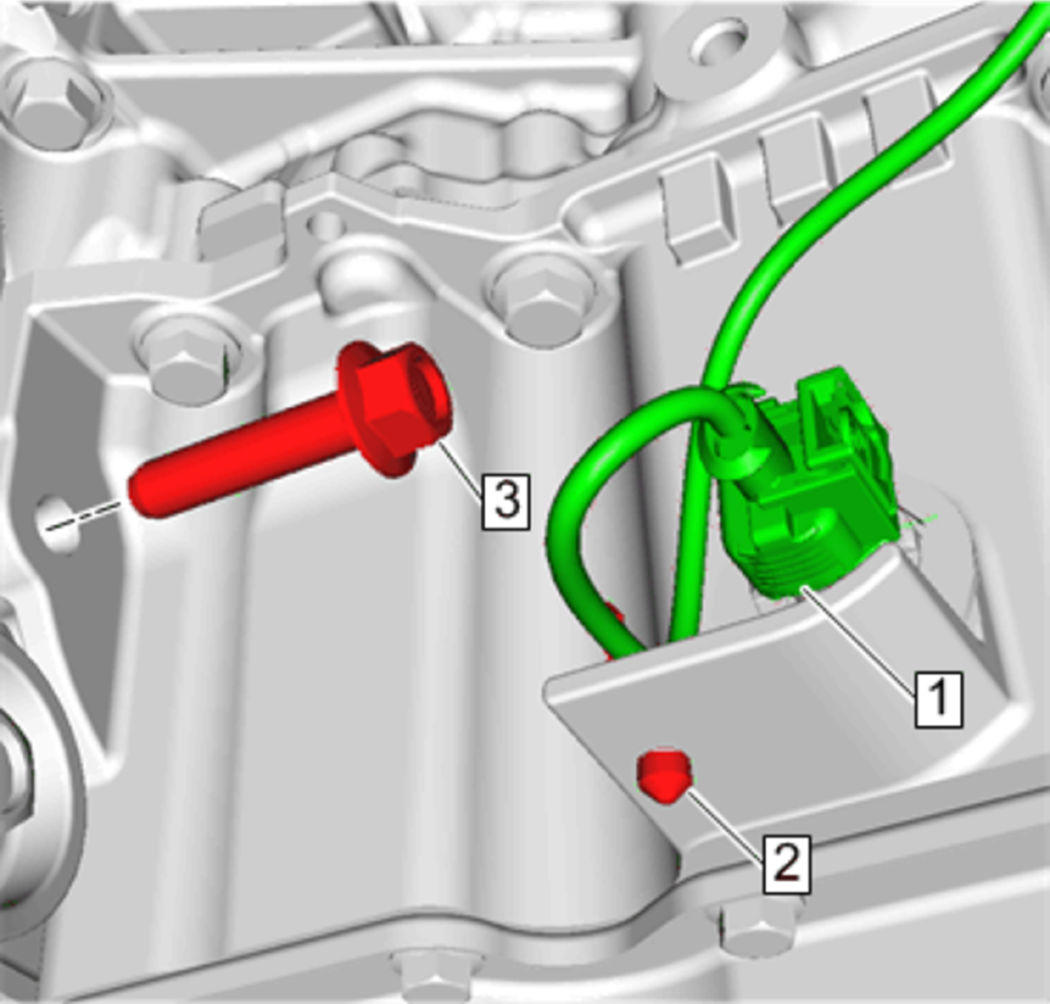

Transmission Bolt (3) - Install - Transmission Replacement (All Wheel Drive) , or Transmission Replacement (Front Wheel Drive)
Wiring Harness Retainer (2) @ Oil Pan - Install
Electrical Connector (1) - Connect
Courtesy of GENERAL MOTORS COMPANY

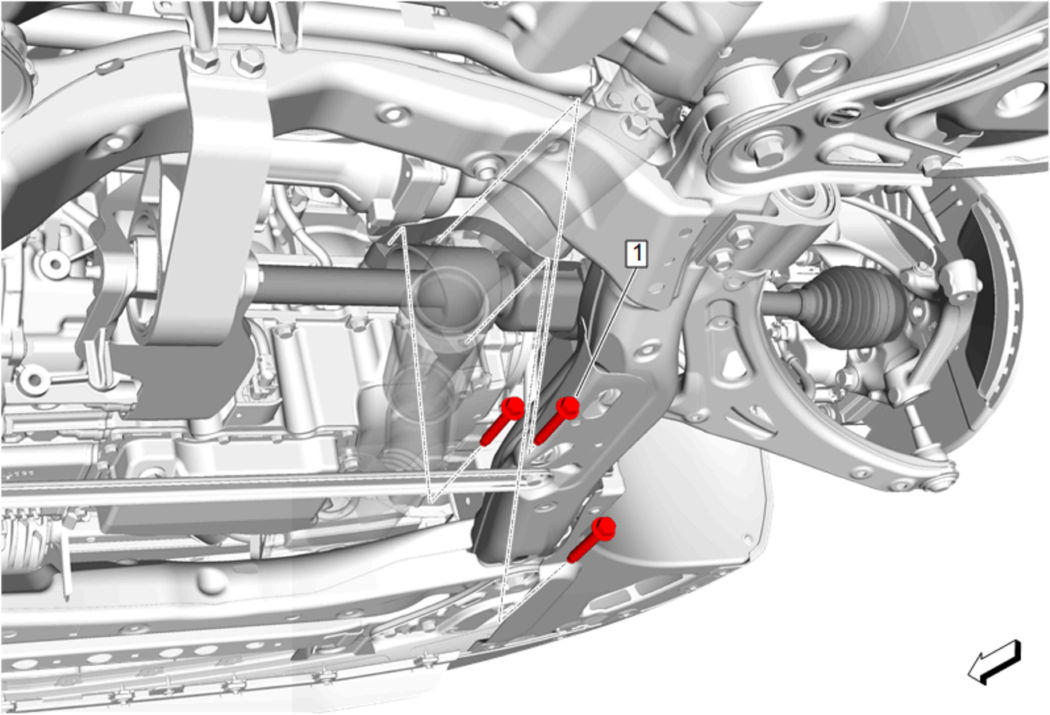

Install the lower front wheel drive intermediate shaft bracket bolt (1) to the oil pan. Front Wheel Drive Shaft Replacement - Right Side (LCV with FWD)
Courtesy of GENERAL MOTORS COMPANY

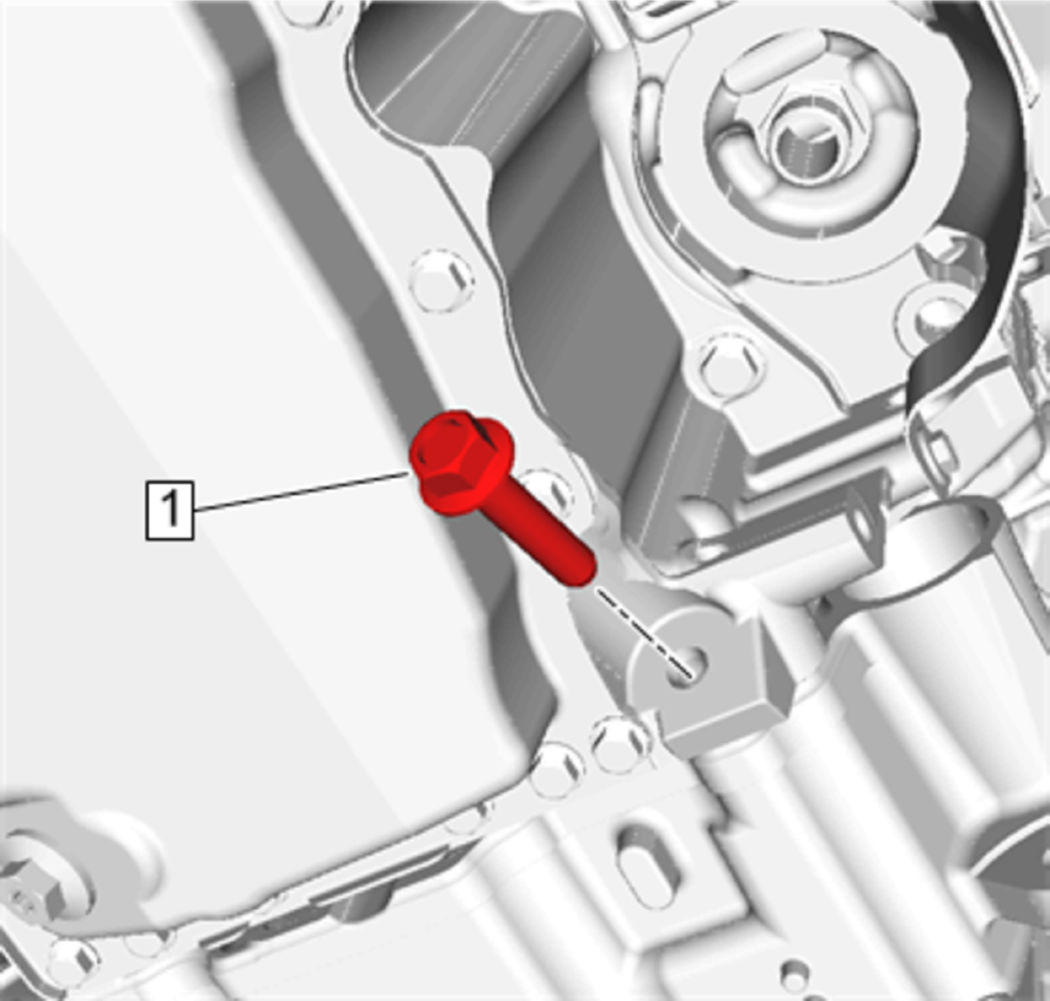

Transmission Bolt (1) - Install - Transmission Replacement (All Wheel Drive) , or Transmission Replacement (Front Wheel Drive)
Courtesy of GENERAL MOTORS COMPANY

Oil Pump Flow Control Valve Heat Shield (3) - Install - Oil Pump Flow Control Valve Heat Shield Replacement
Courtesy of GENERAL MOTORS COMPANY

Engine Front Cover (1) - Install - Engine Front Cover Replacement
Change the engine oil and filter. Engine Oil and Oil Filter Replacement
