Installation Procedure
WARNING: This page is about a different variant/trim than selected.

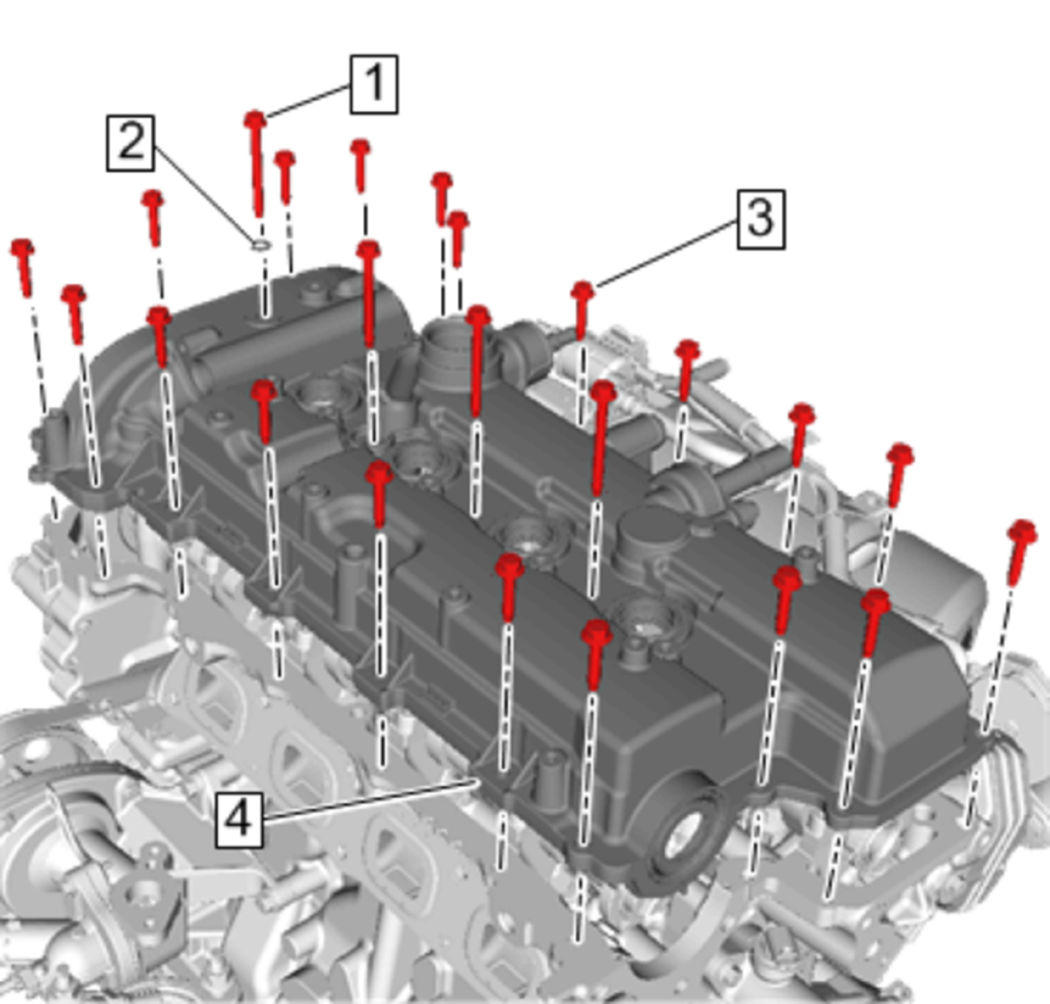

Camshaft Cover (4) - Install - Camshaft Cover Installation
- Camshaft Position Actuator Solenoid Valve - Intake - Install - Camshaft Position Actuator Intake Solenoid Valve Replacement
- Camshaft Position Actuator Solenoid Valve - Exhaust - Install - Camshaft Position Actuator Exhaust Solenoid Valve Replacement
Engine Coolant Air Bleed Pipe (2) - Install - Engine Coolant Air Bleed Pipe Replacement (LCV)
- Ignition Coil - Install [4x] - Ignition Coil Replacement
- Vacuum Pump - Install - Vacuum Pump Replacement
- Oil Level Indicator - Install

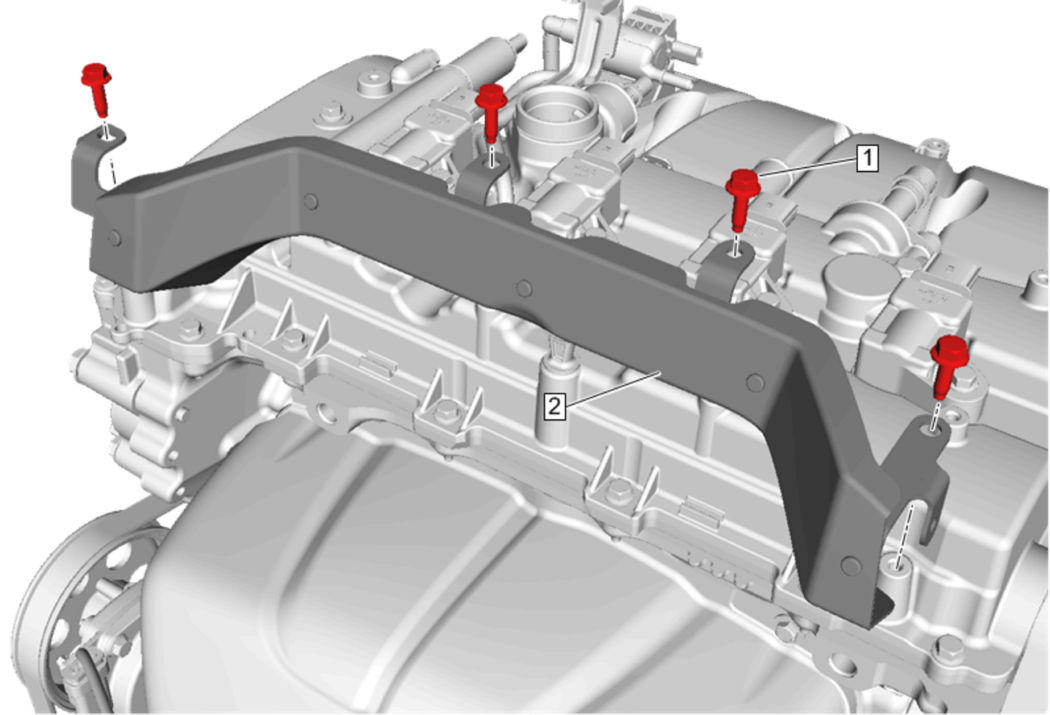

Camshaft Cover Heat Shield (2) - Install - Camshaft Cover Heat Shield Replacement

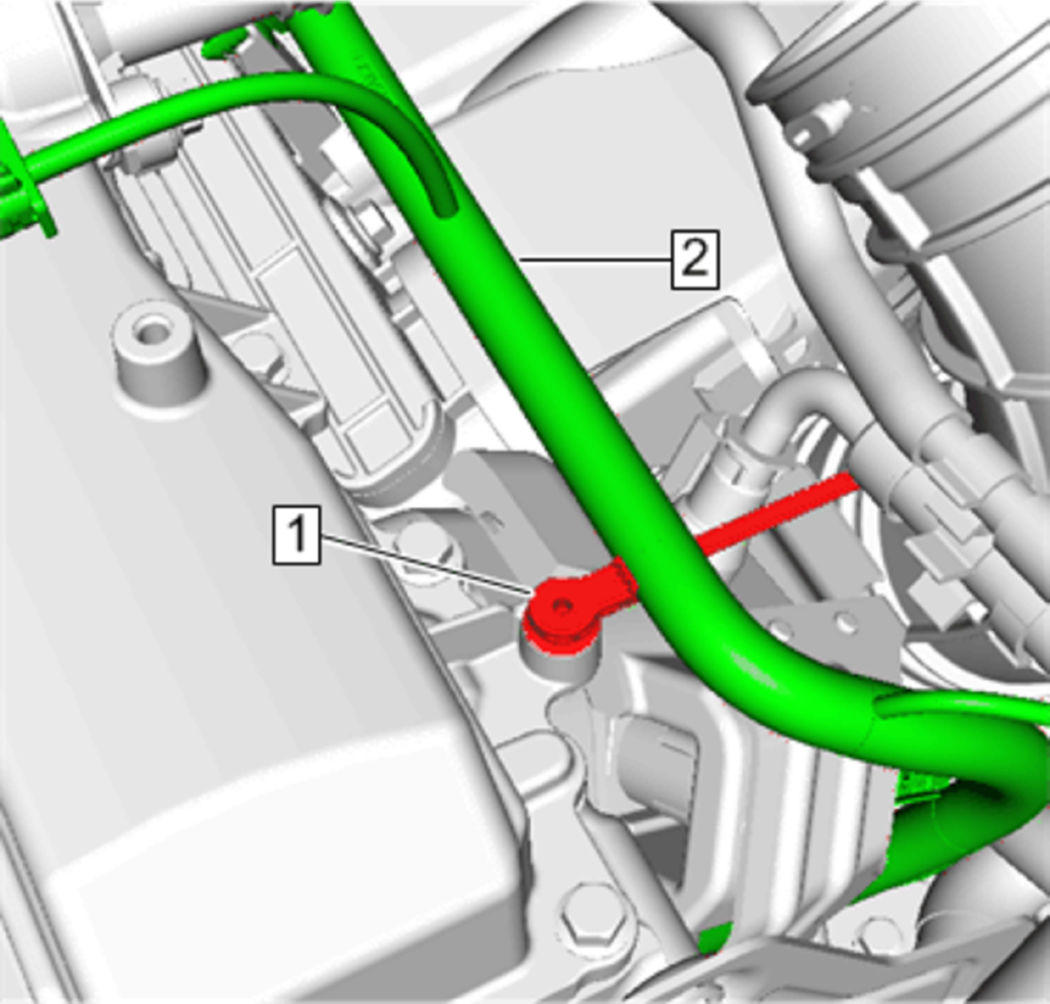

Wiring Harness (2) - Reposition
- Wiring Harness Retainer (1) - Install
Positive Crankcase Ventilation Tube (1) - Install - Positive Crankcase Ventilation Hose/Pipe/Tube Replacement
