Engine Coolant Air Bleed Pipe Replacement (LCV)

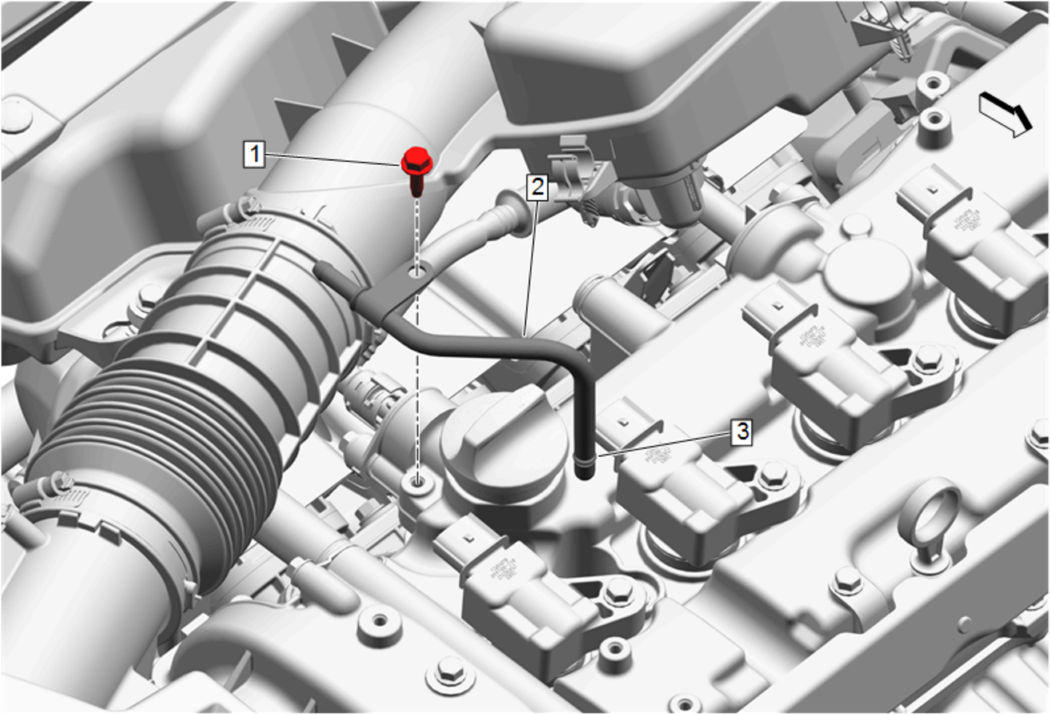

GM5156796Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Intake Manifold Cover Replacement
  2. Disconnect the ignition coil electrical connector.
  3. Radiator Surge Tank Inlet Hose @ Engine Coolant Air Bleed Pipe - Remove - Radiator Surge Tank Inlet Hose Replacement (LCV)
1 Engine Coolant Air Bleed Pipe Bolt
CAUTION:

Refer to Fastener Caution .


Tighten:
10 N.m (89 lb in)
2 Engine Coolant Air Bleed Pipe
3 O-Ring
Install NEW
