Camshaft Position Actuator Exhaust Solenoid Valve Replacement
WARNING: This page is about a different variant/trim than selected.

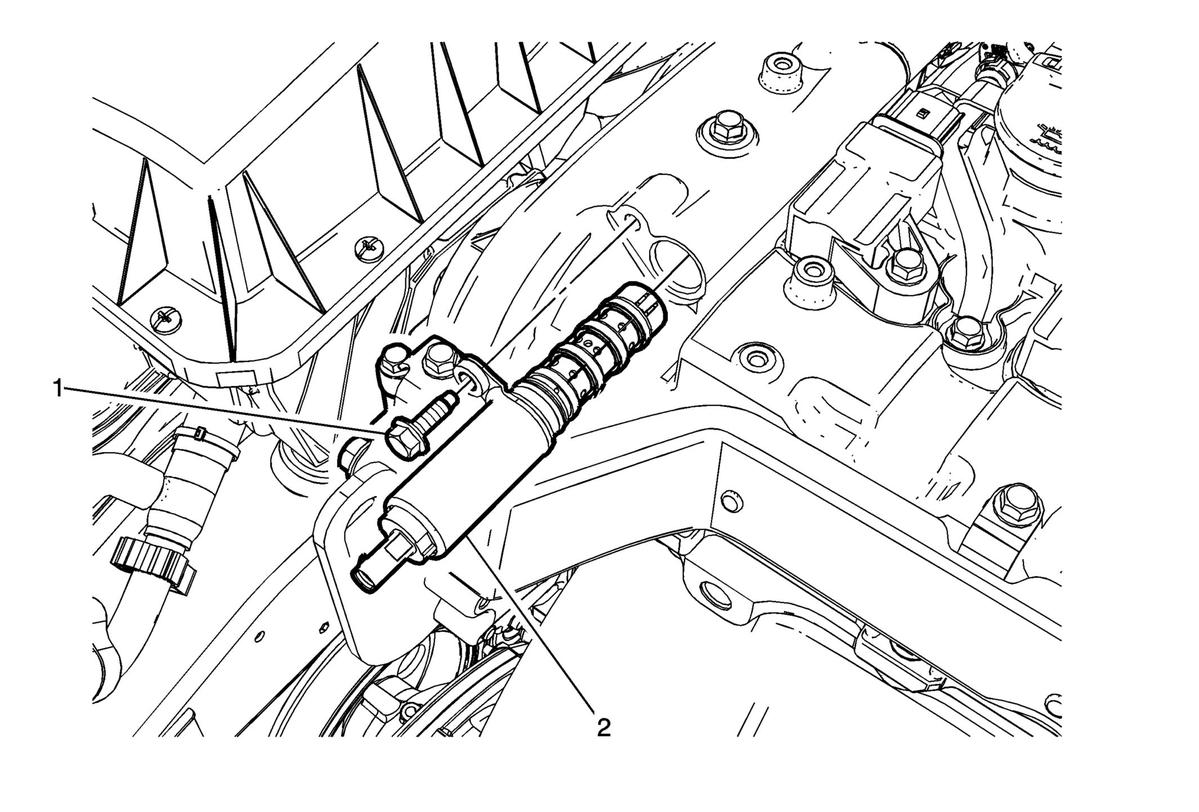

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement . |
|
| 1 | Camshaft Position Actuator Exhaust Solenoid Valve Fastener
CAUTION:
Refer to Fastener Caution . Tighten 10 N.m (89 lb in) |
| 2 | Camshaft Position Actuator Exhaust Solenoid Valve
NOTE:
Inspect the Camshaft Position Actuator Exhaust Solenoid Valve O-ring seals. If damaged, replace the Camshaft Position Actuator Exhaust Solenoid Valve assembly. Procedure Disconnect the electrical wiring harness connector from the camshaft position actuator exhaust solenoid valve. |
