Camshaft Position Actuator Intake Solenoid Valve Replacement

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

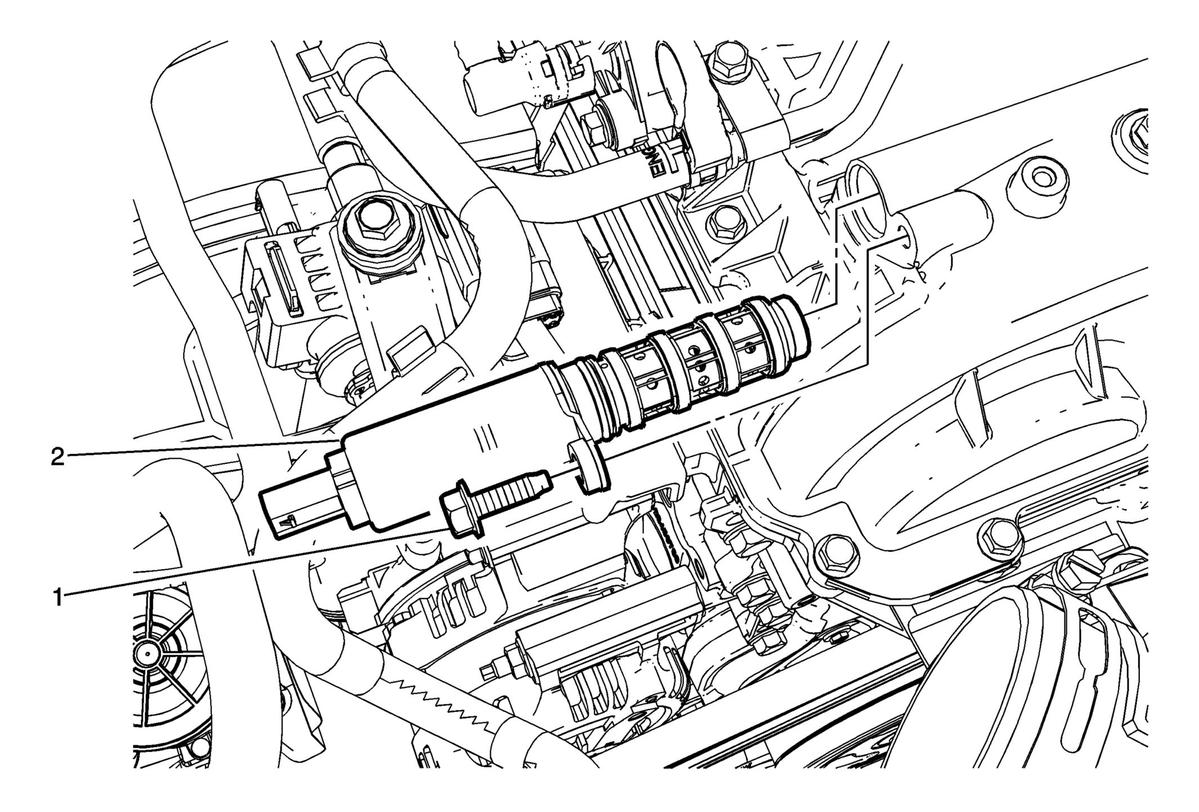

Callout	Component Name
Preliminary Procedures Air Cleaner Outlet Front Duct Replacement Intake Manifold Cover Replacement
1	Camshaft Position Actuator Solenoid Valve Bolt CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Camshaft Position Actuator Intake Solenoid Valve NOTE: Inspect the Camshaft Position Actuator Intake Solenoid Valve O-ring seals. If damaged, replace the Camshaft Position Actuator Intake Solenoid Valve assembly. Procedure Disconnect the electrical wiring harness connector from the camshaft position actuator intake solenoid valve.

Callout

Component Name

Preliminary Procedures

Air Cleaner Outlet Front Duct Replacement
Intake Manifold Cover Replacement

Camshaft Position Actuator Solenoid Valve Bolt

CAUTION:

Refer to Fastener Caution .

Tighten
10 N.m (89 lb in)

Camshaft Position Actuator Intake Solenoid Valve

NOTE:

Inspect the Camshaft Position Actuator Intake Solenoid Valve O-ring seals. If damaged, replace the Camshaft Position Actuator Intake Solenoid Valve assembly.

Procedure
Disconnect the electrical wiring harness connector from the camshaft position actuator intake solenoid valve.
