Front Side Door Window Weatherstrip Replacement

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

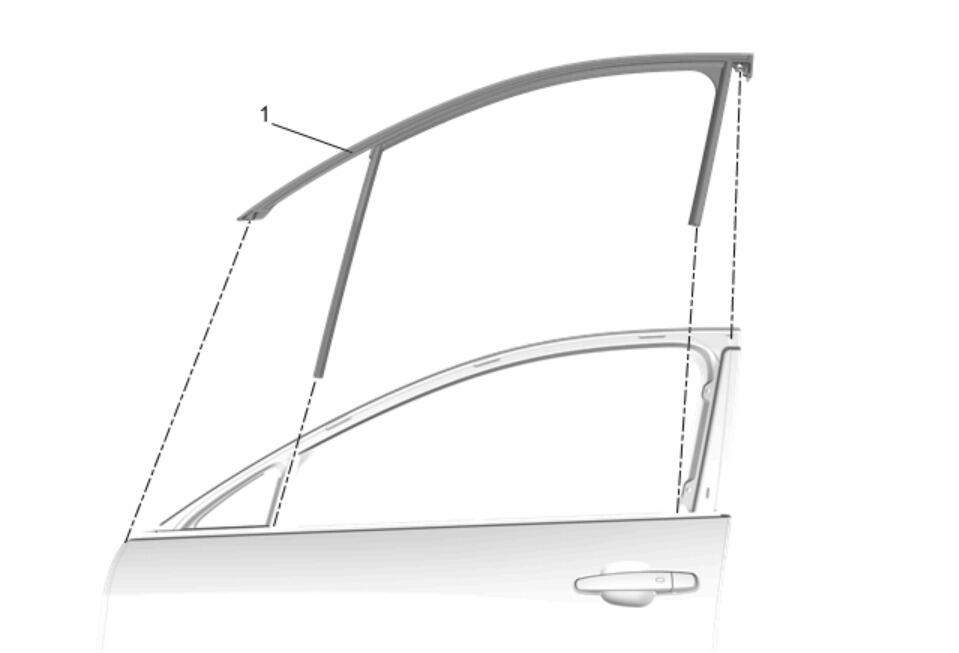

GM4214818Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Outside Rearview Mirror Replacement
  2. Remove the front side door water deflector.
  3. Radio Front Side Door Speaker Replacement
  4. Front Side Door Window Belt Reveal Molding Replacement
  5. Front Side Door Window Frame Rear Applique Replacement
  6. Front Side Door Window Upper Reveal Molding Replacement
1 Front Side Door Window Weatherstrip
