Outside Rearview Mirror Replacement

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

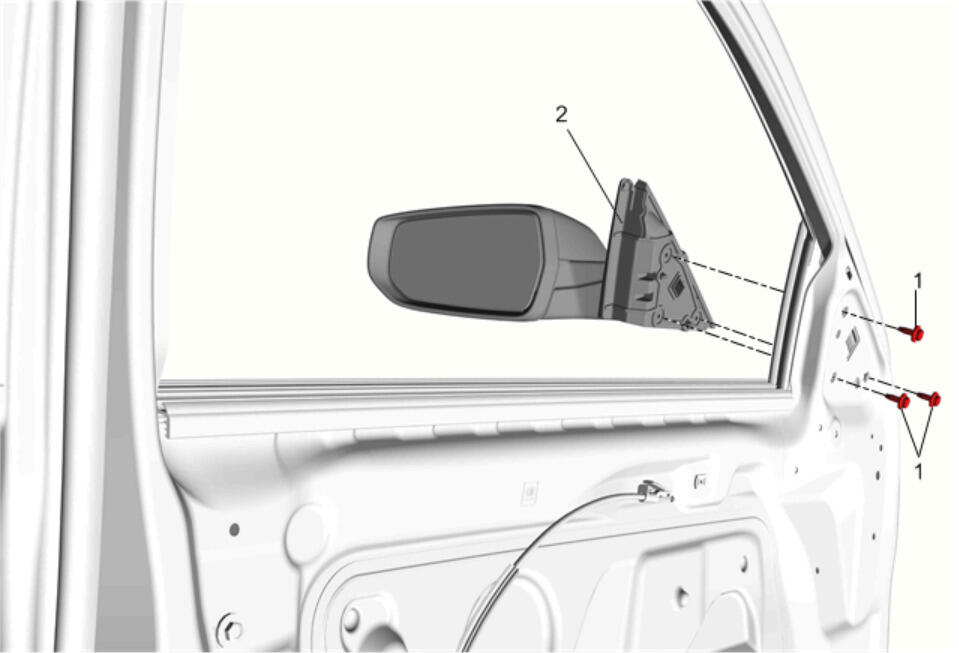

Callout	Component Name
WARNING: Refer to Glass and Sheet Metal Handling Warning Preliminary Procedures Front Side Door Window Garnish Molding Replacement Disconnect the electrical connector.
1	Outside Rearview Mirror Fastener [3x] CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Outside Rearview Mirror NOTE: Inspect the mirror for proper operation before installing the door trim.
