Front Side Door Window Upper Reveal Molding Replacement
WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| Preliminary Procedure Open the front door. |
|

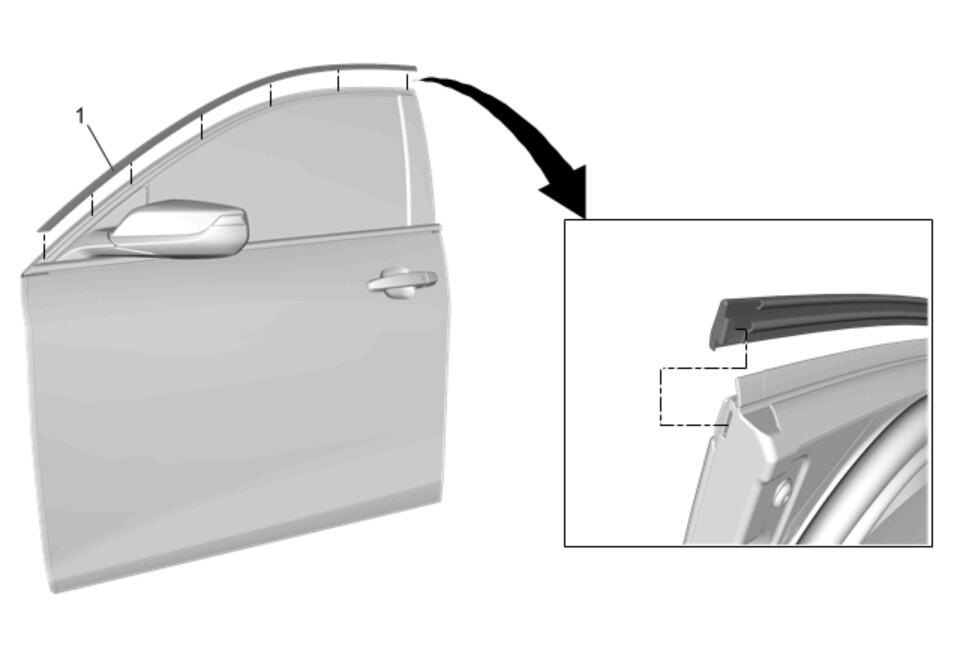

| 1 | Front Side Door Window Upper Reveal Molding Procedure Using the appropriate tool, release the upper reveal molding starting at the front working to the rear of the front door. Slide molding rearward to release the hook clip from the rear of the front door. |
