Front Side Door Window Belt Reveal Molding Replacement

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Outside Rearview Mirror Replacement

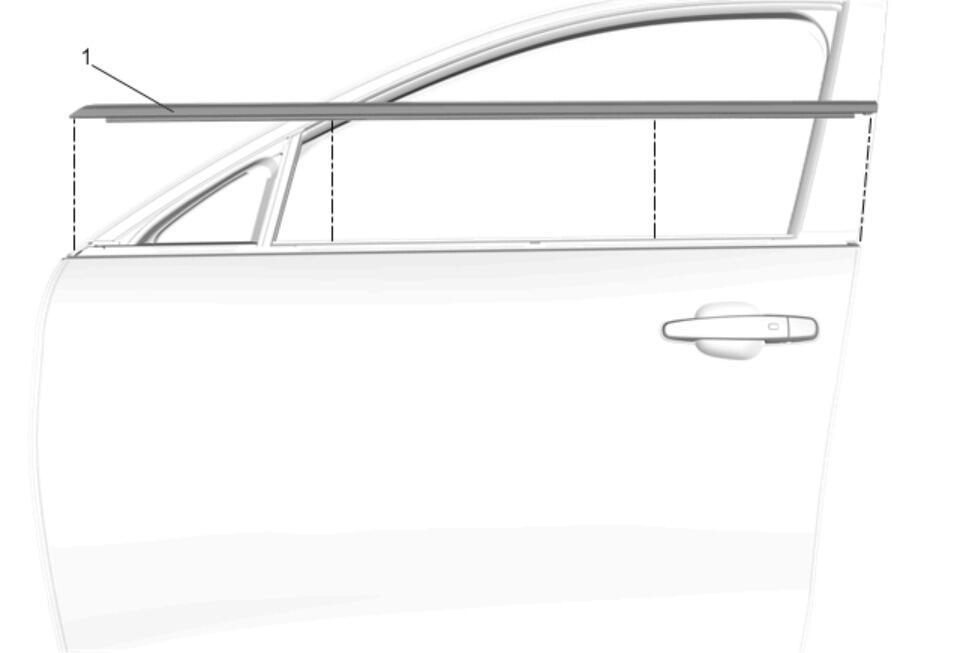

1	Front Side Door Window Belt Reveal Molding CAUTION: Refer to Paint Damage Caution . Procedure Place the front door window in the full down position. Apply masking tape to the outer applique and door frame. Using a small flat-bladed tool, lift up at the rear of the belt molding and slide the front of the belt molding out from underneath and behind the front side door window upper reveal molding to remove from the door flange. Press firmly to insert the front side door window belt reveal molding back on the door flange. Inspect the window for proper operation.

Callout

Component Name

Preliminary Procedure
Outside Rearview Mirror Replacement

Front Side Door Window Belt Reveal Molding

CAUTION:

Refer to Paint Damage Caution .

Procedure

Place the front door window in the full down position.
Apply masking tape to the outer applique and door frame.
Using a small flat-bladed tool, lift up at the rear of the belt molding and slide the front of the belt molding out from underneath and behind the front side door window upper reveal molding to remove from the door flange.
Press firmly to insert the front side door window belt reveal molding back on the door flange.
Inspect the window for proper operation.
