Installation Procedure

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Rear Side Door Inside Handle Cable Replacement - Install
Rear Side Door Outside Handle Cable Replacement - Install
Transfer components as necessary.
Courtesy of GENERAL MOTORS COMPANY

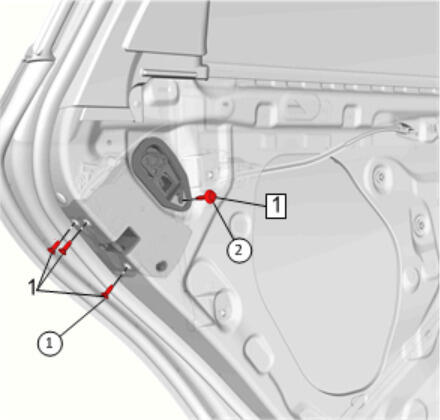

Rear Side Door Outside Handle Bracket (1) @ the Rear Side Door Latch (2) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution

NOTE:
Tighten in proper sequence to prevent damage to the latch mechanism.

Rear Side Door Latch Bolt (1) - Install and tighten [4x] 9 N.m (80 lb in)
Rear Side Door Outside Handle Bracket Replacement - Install
Rear Side Door Window Weatherstrip Retainer Replacement - Install
Connect the electrical connector.
Inspect the door latch, window and outside handle for proper operation before installing the door trim.
