Rear Side Door Inside Handle Cable Replacement

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

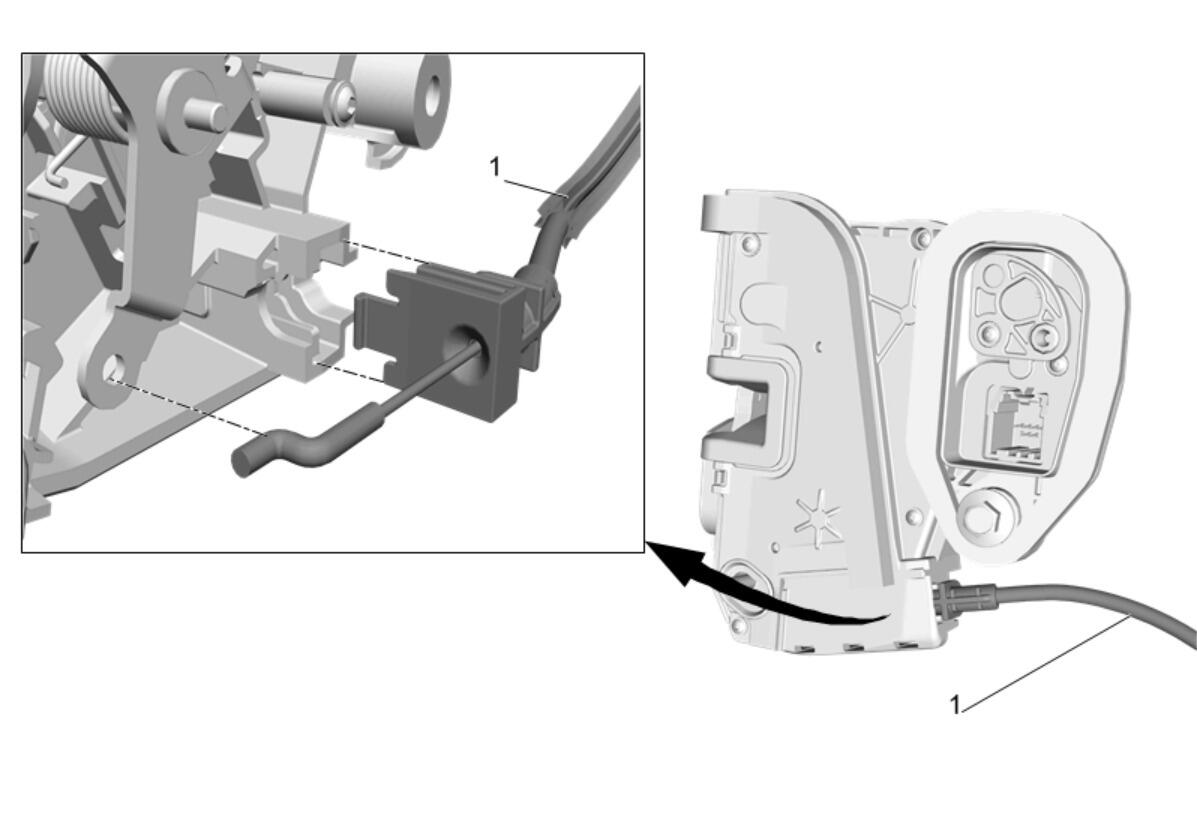

GM4205203Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Rear Side Door Latch Replacement
1 Rear Side Door Inside Handle Cable
Procedure
  1. Using the appropriate tool, open the access cover to view the cable end.
  2. Release the cable from the latch assembly.
  3. Ensure that the door lock system operates properly before installing the door trim.
