Rear Side Door Window Weatherstrip Retainer Replacement

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

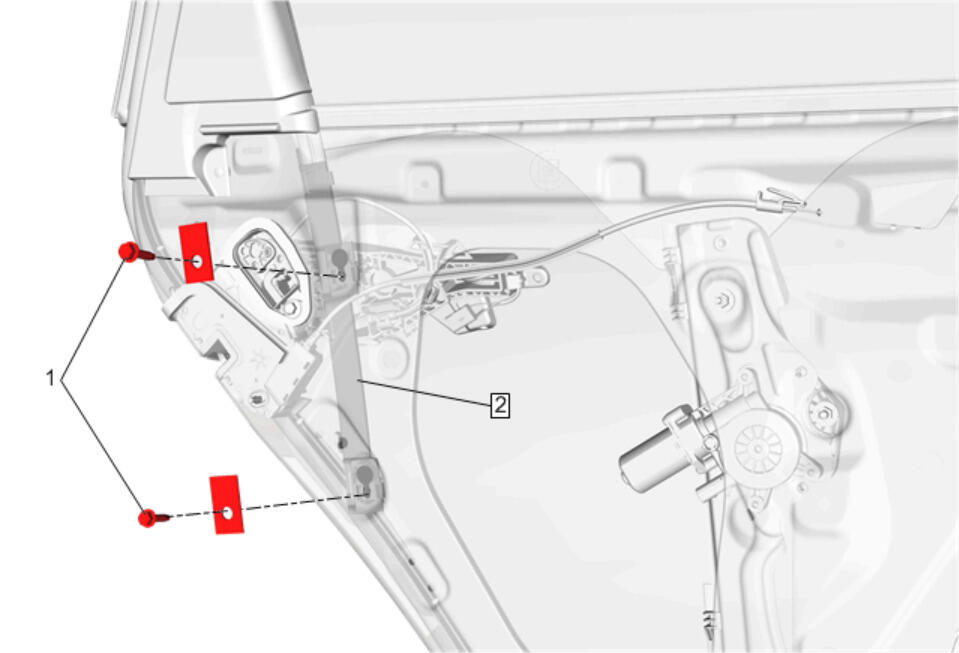

Callout	Component Name
WARNING: Disconnect the power window switch when working inside the door. When operated, the Express Up/Down Feature allows the door window to move very quickly, without stopping, which could cause personal injury. Preliminary Procedures Rear Side Door Trim Replacement Position the window to the full up position. Remove the water deflector.
1	Rear Side Door Window Channel Rear Retainer Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten 11 N.m (97 lb in)
2	Rear Side Door Window Channel Rear Retainer NOTE: Inspect the window for proper operation before installing the water deflector.

Callout

Component Name

WARNING:

Disconnect the power window switch when working inside the door. When operated, the Express Up/Down Feature allows the door window to move very quickly, without stopping, which could cause personal injury.

Preliminary Procedures

Rear Side Door Trim Replacement
Position the window to the full up position.
Remove the water deflector.

Rear Side Door Window Channel Rear Retainer Bolt [2x]

CAUTION:

Refer to Fastener Caution .

Tighten
11 N.m (97 lb in)

Rear Side Door Window Channel Rear Retainer

NOTE:

Inspect the window for proper operation before installing the water deflector.
