Rear Side Door Outside Handle Cable Replacement

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Rear Side Door Latch Replacement

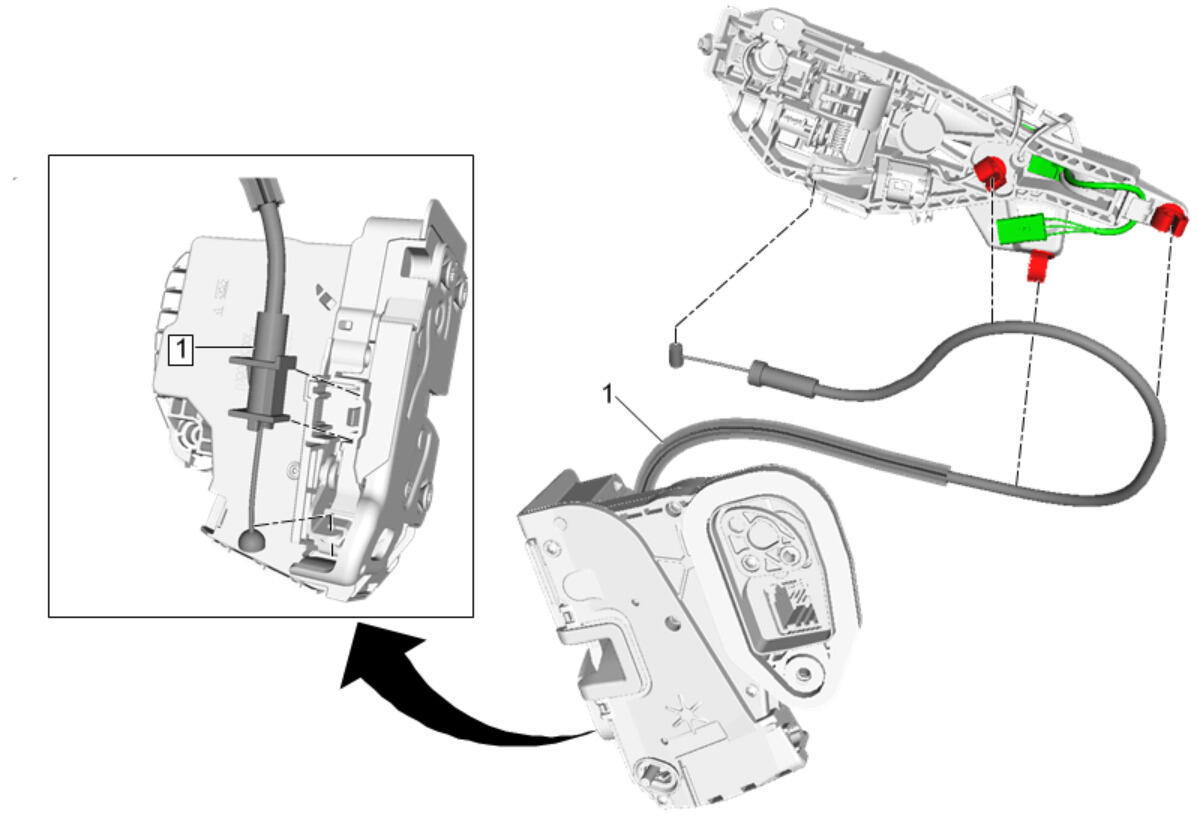

1	Rear Side Door Outside Handle Cable Procedure Remove the rear side door outside handle cable from the handle retainers. Release the cable from the back of the latch assembly. Remove the rear side door outside handle cable from the rear side door outside handle bracket.

Callout

Component Name

Preliminary Procedure
Rear Side Door Latch Replacement

Rear Side Door Outside Handle Cable

Procedure

Remove the rear side door outside handle cable from the handle retainers.
Release the cable from the back of the latch assembly.
Remove the rear side door outside handle cable from the rear side door outside handle bracket.
