Removal Procedure
WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
- Without disconnecting the hoses, remove and position aside the radiator surge tank. Radiator Surge Tank Replacement (LTG) , or Radiator Surge Tank Replacement (LKN) , or Radiator Surge Tank Replacement (LFV)
Power Brake Booster Bolt (1) - Remove [2x]
- Floor Front Air Outlet Duct - Left Side - Remove - Floor Front Air Outlet Duct Replacement - Left Side

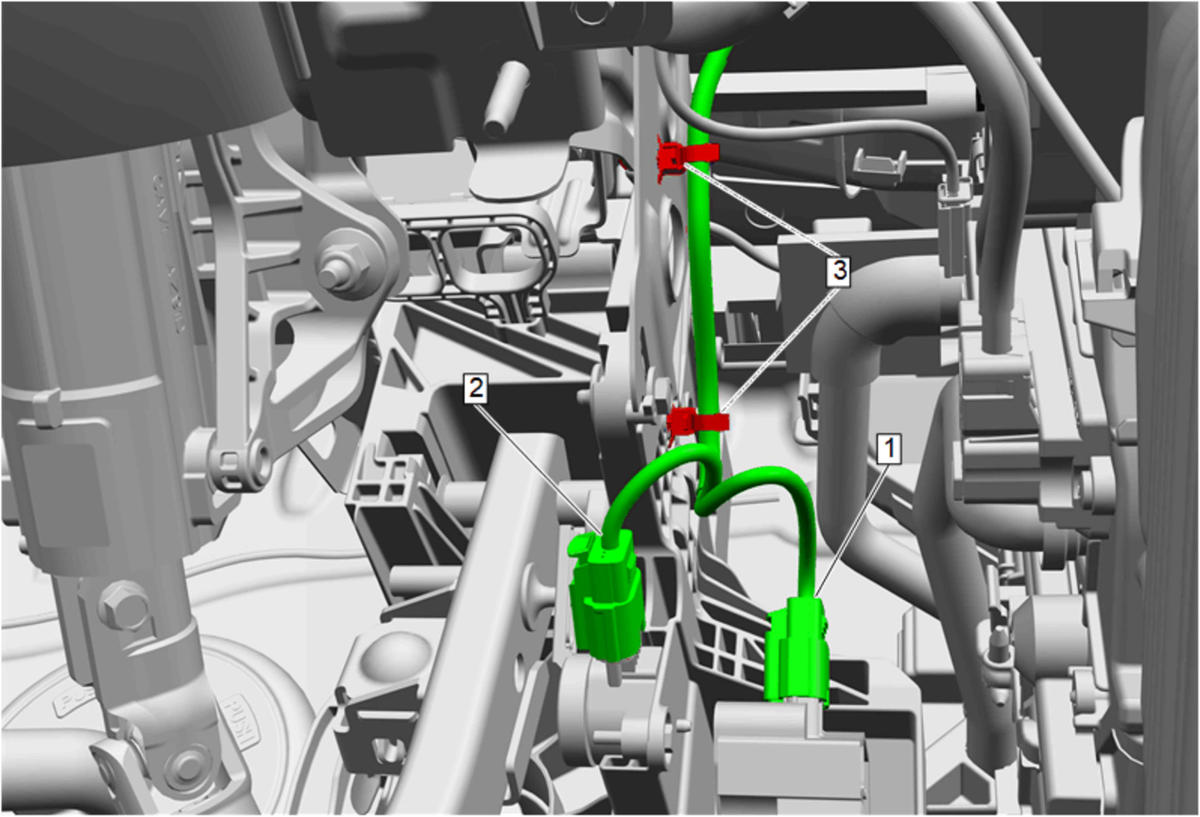

Accelerator Pedal Position Sensor Electrical Connector (1) - Disconnect
- Brake Pedal Position Sensor Electrical Connector (2) - Disconnect
- Wiring Harness Retainer (3) - Release (2x)
Compress the brake pedal retainer (1) locking tabs.
- NOTE:
Pull the brake pedal rearward to disconnect the retainer.
Brake Pedal (1) - Disconnect
Brake Pedal Retainer (1) - Remove and DISCARD
Upper Intermediate Steering Shaft (3) - Remove - Upper Intermediate Steering Shaft Replacement
Steering Column (1) - Remove - Steering Column Replacement
Brake and Accelerator Pedal Assembly Nut (1) - Remove
Brake and Accelerator Pedal Assembly Bolt (1) - Remove [2x]
- With the aid of an assistant, gently pull back on the brake booster assembly from the engine compartment to allow clearance for the brake and accelerator pedal assembly to be removed.
Brake and Accelerator Pedal Assembly (1) - Remove
- Transfer components as necessary.
