Removal Procedure
WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
- Without draining the coolant and without disconnecting the hoses, position aside the radiator surge tank. - Radiator Surge Tank Replacement (LTG) , or Radiator Surge Tank Replacement (LKN) , or Radiator Surge Tank Replacement (LFV)
- Disconnect the brake fluid level sensor electrical connector.
- Remove and properly dispose of the brake fluid in the master cylinder reservoir.

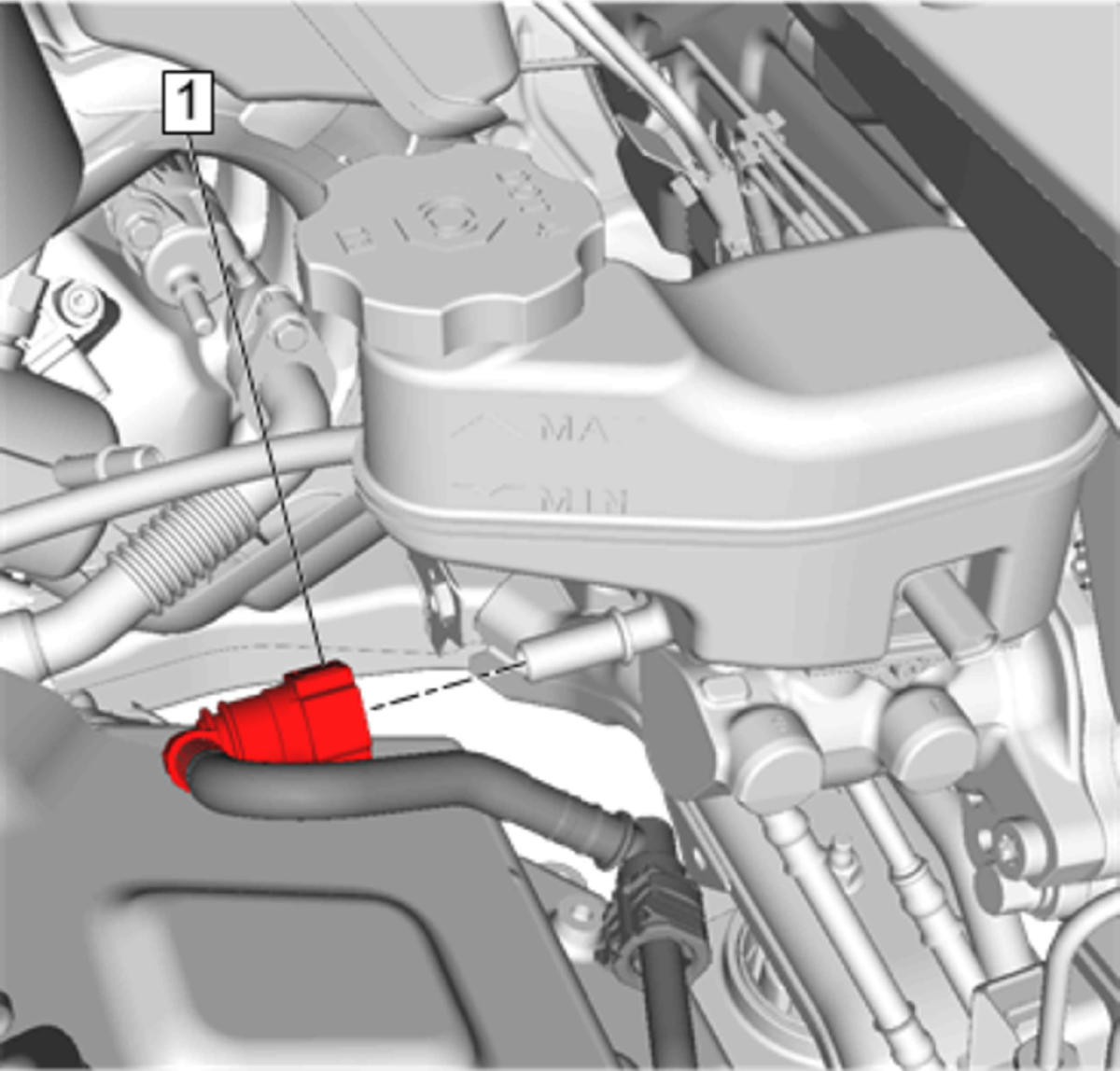

Brake Master Cylinder Hose Quick Connect Fitting (1) - Disconnect
- Cap the hose fitting to prevent brake fluid loss and contamination.

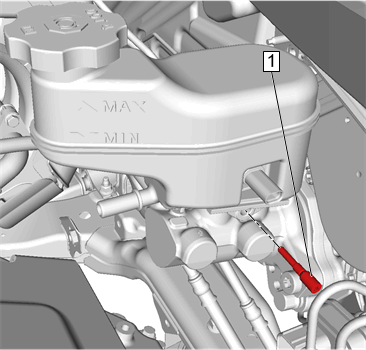

Brake Master Cylinder Reservoir Bolt (1) - Remove and DISCARD

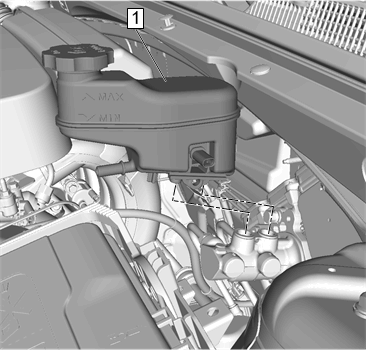

Brake Master Cylinder Reservoir (1) - Remove

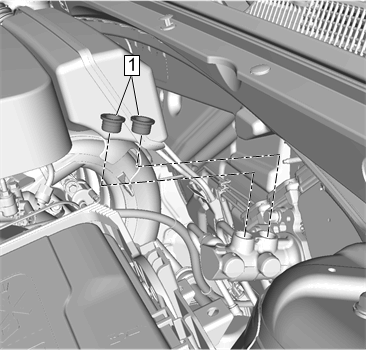

Brake Master Cylinder Reservoir Seal (1) - Remove and DISCARD [2x]
