Installation Procedure

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

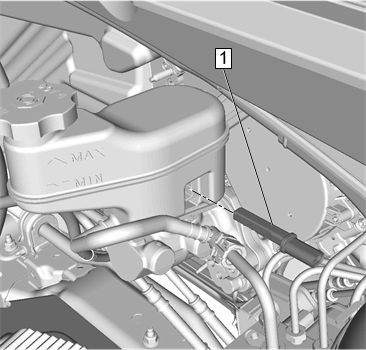

  1. GM4320385Courtesy of GENERAL MOTORS COMPANY

    Brake Fluid Level Sensor (1) - Install

  2. Ensure the brake fluid level sensor locking tab is fully engaged.
  3. Connect the brake fluid level sensor electrical connector.
  4. Reposition and install the radiator surge tank. - Radiator Surge Tank Replacement (LTG) , or Radiator Surge Tank Replacement (LKN) , or Radiator Surge Tank Replacement (LFV)
