Removal Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the body rear corner garnish molding. Refer to Body Rear Corner Garnish Molding Replacement .
  2. Remove the body side rear trim panel. Refer to Body Rear Corner Trim Panel Replacement - Left Side , or Body Side Trim Panel Replacement - Right Side .
  3. Remove the rear corner trim panel. Refer to Body Rear Corner Trim Panel Replacement - Left Side , or Body Rear Corner Trim Panel Replacement - Right Side .
  4. Remove the rear floor trim plate. Refer to Rear Floor Trim Plate Replacement .
  5. Remove the back body opening garnish molding. Refer to Back Body Opening Garnish Molding Replacement .

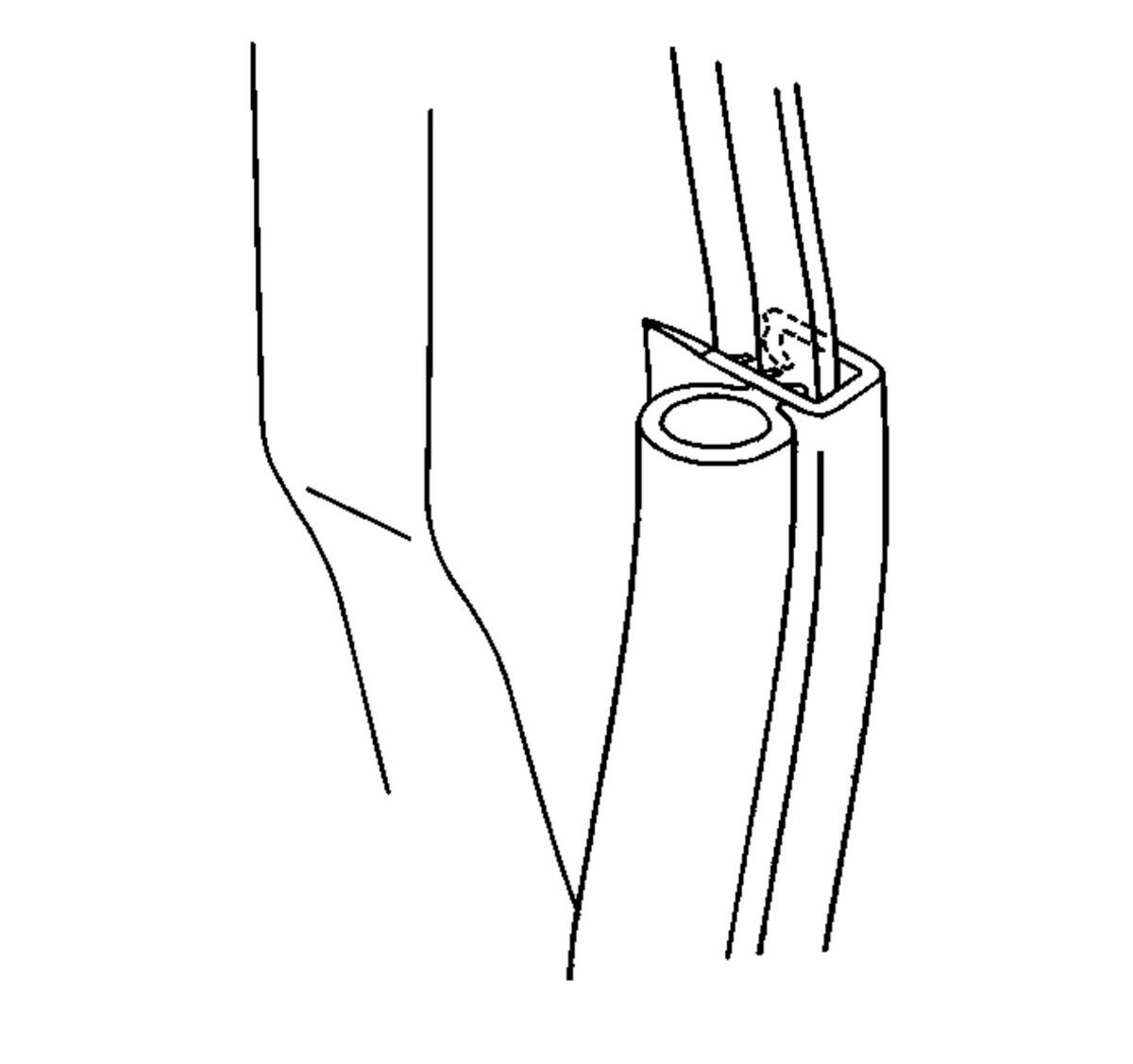

  6. GM333961Courtesy of GENERAL MOTORS COMPANY

    Pull the rear door opening weatherstrip from the door opening pinch-weld flange. Use 3M Release Agent or the equivalent at the bottom ends of the rear door opening weatherstrip if needed.
