Body Rear Corner Trim Panel Replacement - Left Side

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Rear Bench Seat Removal and Installation (With Bench Seat) , or Rear Bench Seat Removal and Installation (With Split Bench)

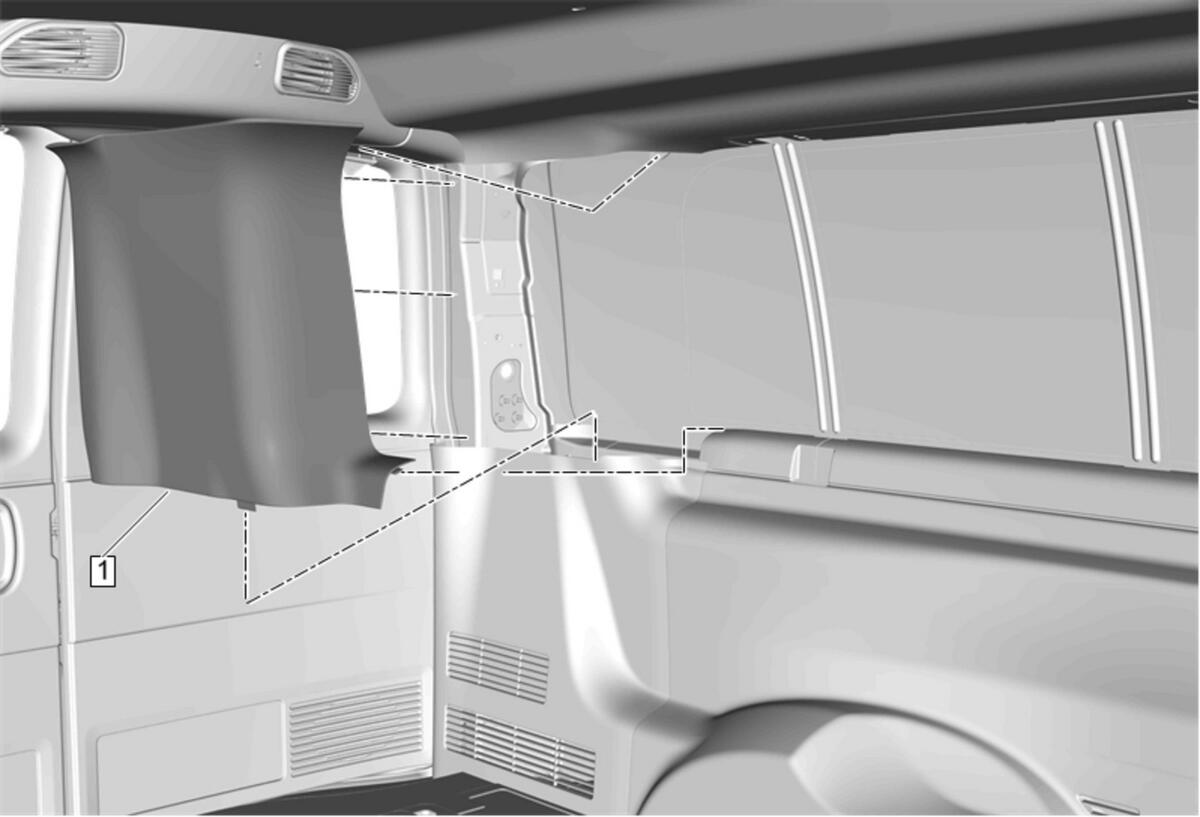

1	Body Rear Corner Trim Panel - Left Side Procedure Use a flat bladed plastic trim tool. Grasp and gently pull inward in order to disengage the retaining clips.

Callout

Component Name

Preliminary Procedure
Rear Bench Seat Removal and Installation (With Bench Seat) , or Rear Bench Seat Removal and Installation (With Split Bench)

Body Rear Corner Trim Panel - Left Side

Procedure

Use a flat bladed plastic trim tool.
Grasp and gently pull inward in order to disengage the retaining clips.
