Body Rear Corner Garnish Molding Replacement

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Disable the SIR system. SIR Disabling and Enabling

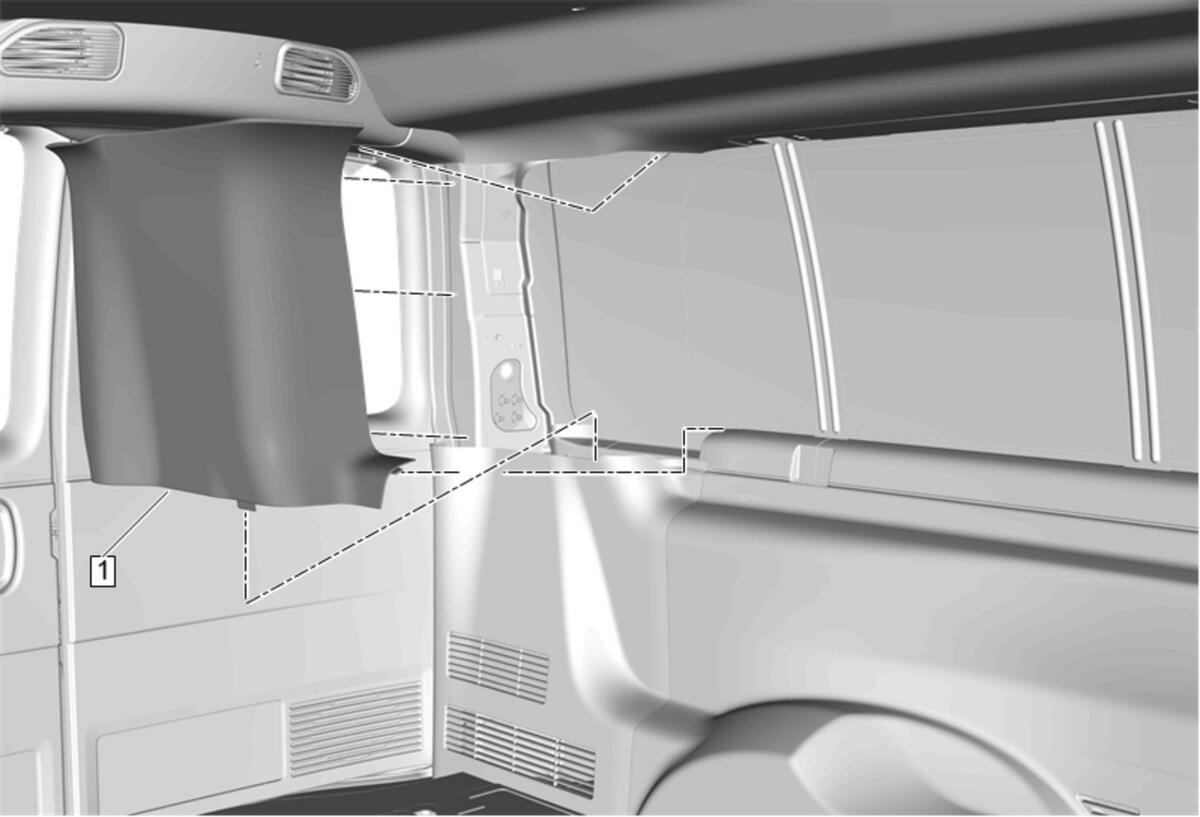

1	Body Rear Corner Garnish Molding Procedure Use a flat bladed plastic trim tool. Grasp and gently pull inward while lifting up and rearward in order to disengage the retaining clips and integral tabs. Release the seat belt end from the seat buckle. Enable the SIR System. SIR Disabling and Enabling

Callout

Component Name

Preliminary Procedure
Disable the SIR system. SIR Disabling and Enabling

Body Rear Corner Garnish Molding

Procedure

Use a flat bladed plastic trim tool.
Grasp and gently pull inward while lifting up and rearward in order to disengage the retaining clips and integral tabs.
Release the seat belt end from the seat buckle.
Enable the SIR System. SIR Disabling and Enabling
