Body Rear Corner Trim Panel Replacement - Right Side

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

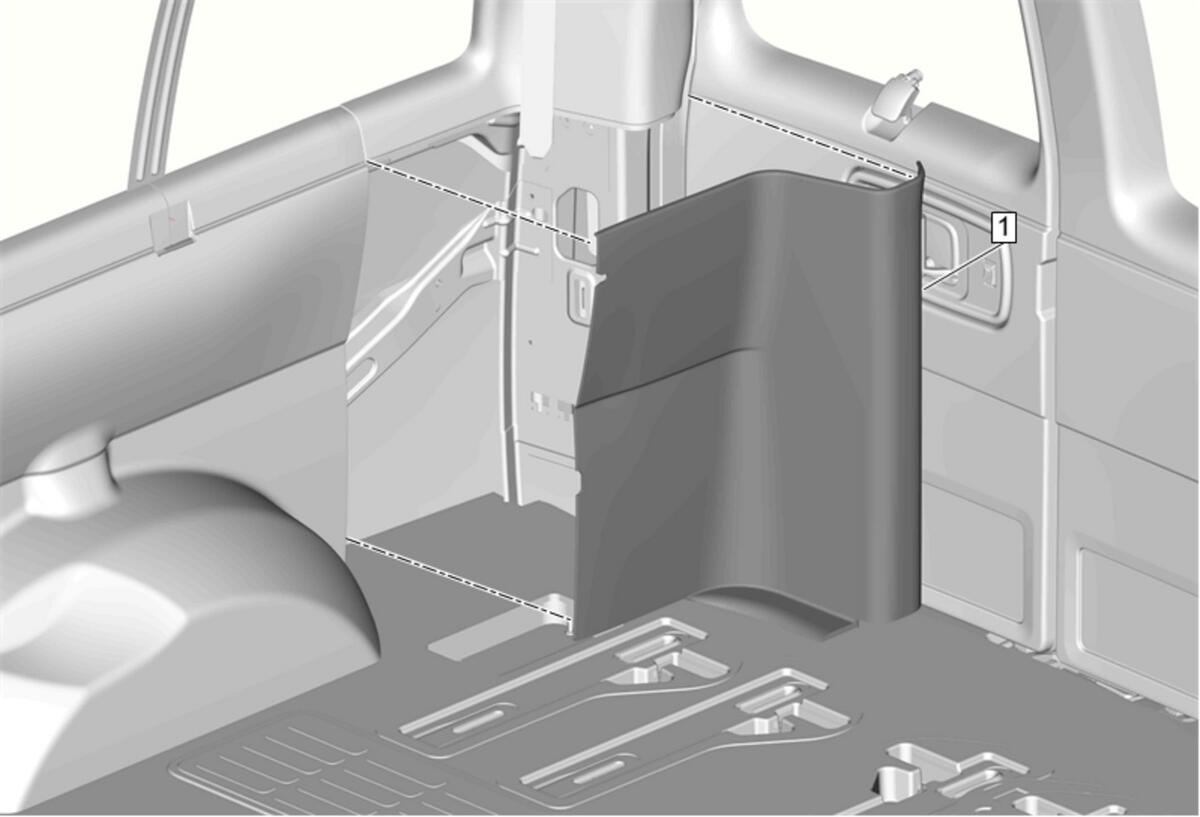

GM4862444Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Body Rear Corner Trim Panel - Right Side

Procedure

  1. Use a flat bladed plastic trim tool.
  2. Grasp and gently pull inward in order to disengage the retaining clips.
