Installation Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
Apply weatherstrip adhesive into the channel on the rear door opening weatherstrip. Use GM P/N 12345097 (Canadian P/N 10953479) or the equivalent.

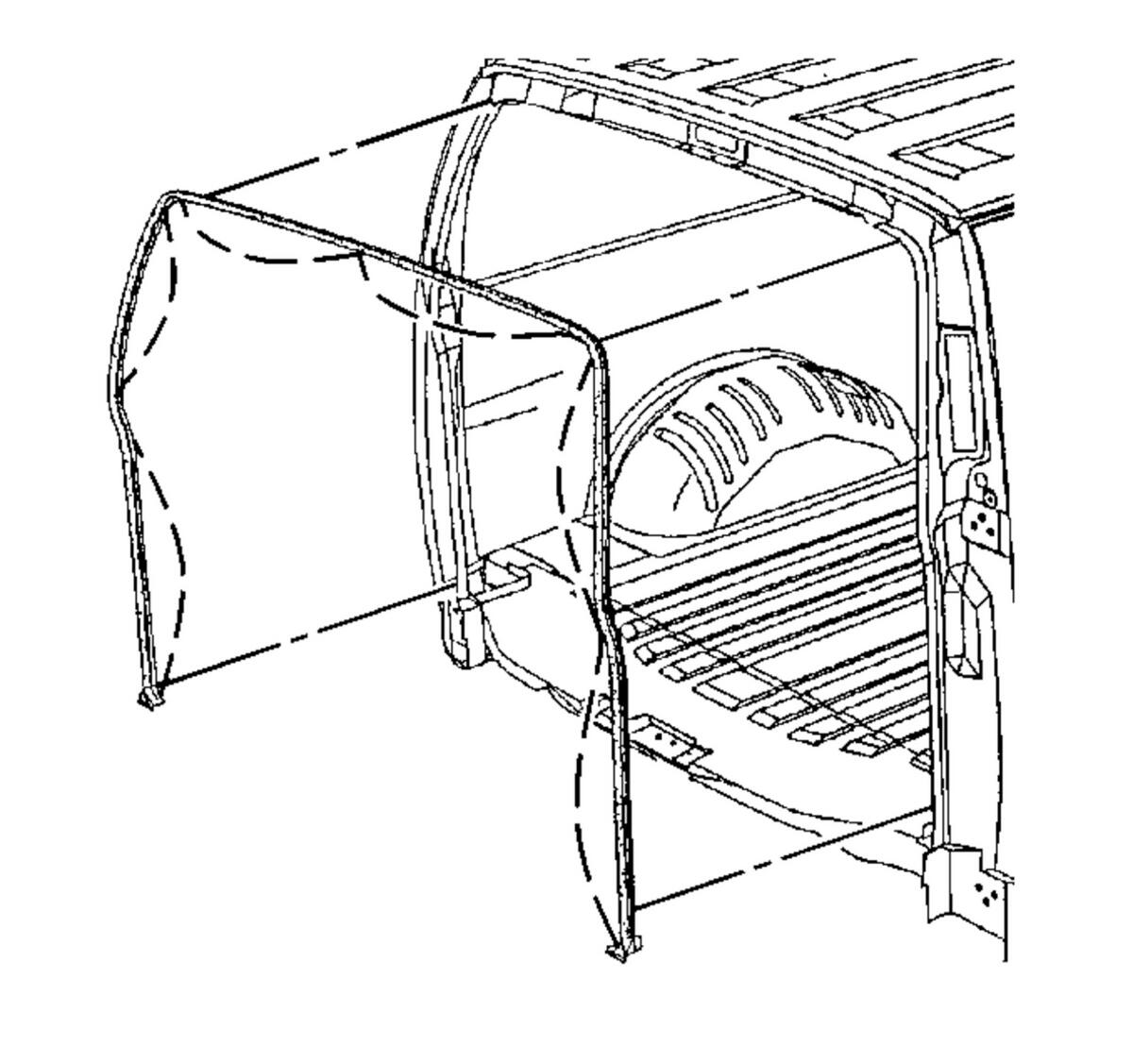

Start at the corners and align the rear door opening weatherstrip to the door opening pinch-weld flange.
- Align the channel on the rear door opening weatherstrip with the pinch-weld flange.
- Press the weatherstrip into place. If you are reinstalling the original weatherstrip, use GM weatherstrip adhesive GM P/N 12345097 (Canadian P/N 10953479) at the bottom ends of the rear door opening weatherstrip in order to retain the weatherstrip to the body.
Install the retainers in the ends of the rear door opening weatherstrip into the holes in the floor panel.
- Install the back body opening garnish molding. Refer to Back Body Opening Garnish Molding Replacement .
- Install the rear floor trim plate. Refer to Rear Floor Trim Plate Replacement .
- Install the rear corner trim panel. Refer to Body Rear Corner Trim Panel Replacement - Left Side , or Body Rear Corner Trim Panel Replacement - Right Side .
- Install the body rear corner garnish molding. Refer to Body Rear Corner Garnish Molding Replacement .
NOTE:
When installing the rear door opening weatherstrip, ensure that the corners have not pulled away from the body.
