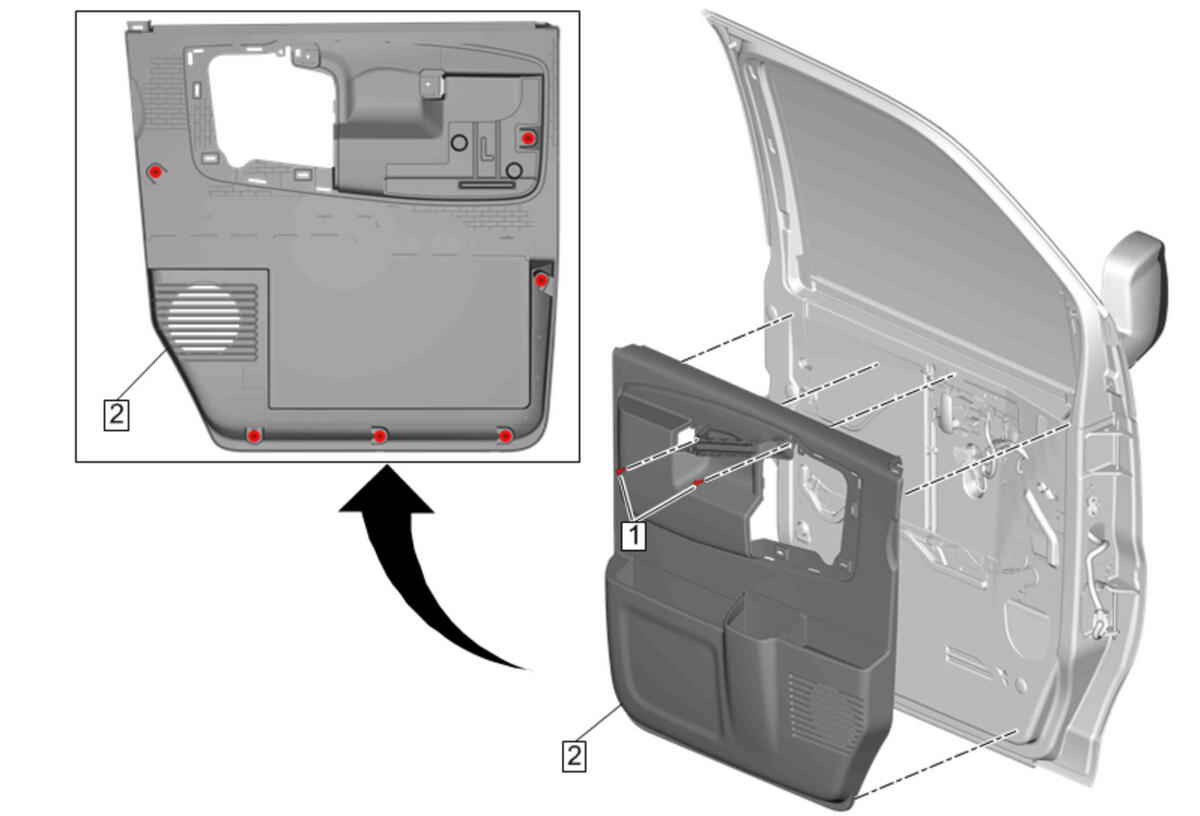

Front Side Door Trim Panel Replacement
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
Preliminary Procedures
Front Side Door Front Garnish Molding Replacement
Front Door Trim Plate Replacement
Front Side Door Pull Handle Cover Replacement
1
Front Side Door Trim Panel Bolt [2x]
CAUTION:
Fastener Caution
Tighten
1.9N.m (17 lb in)
2
Front Side Door Trim Panel
Procedure
Use an appropriate trim tool to release the retainers on the front side door trim panel.
