Front Side Door Pull Handle Cover Replacement

Courtesy of GENERAL MOTORS COMPANY

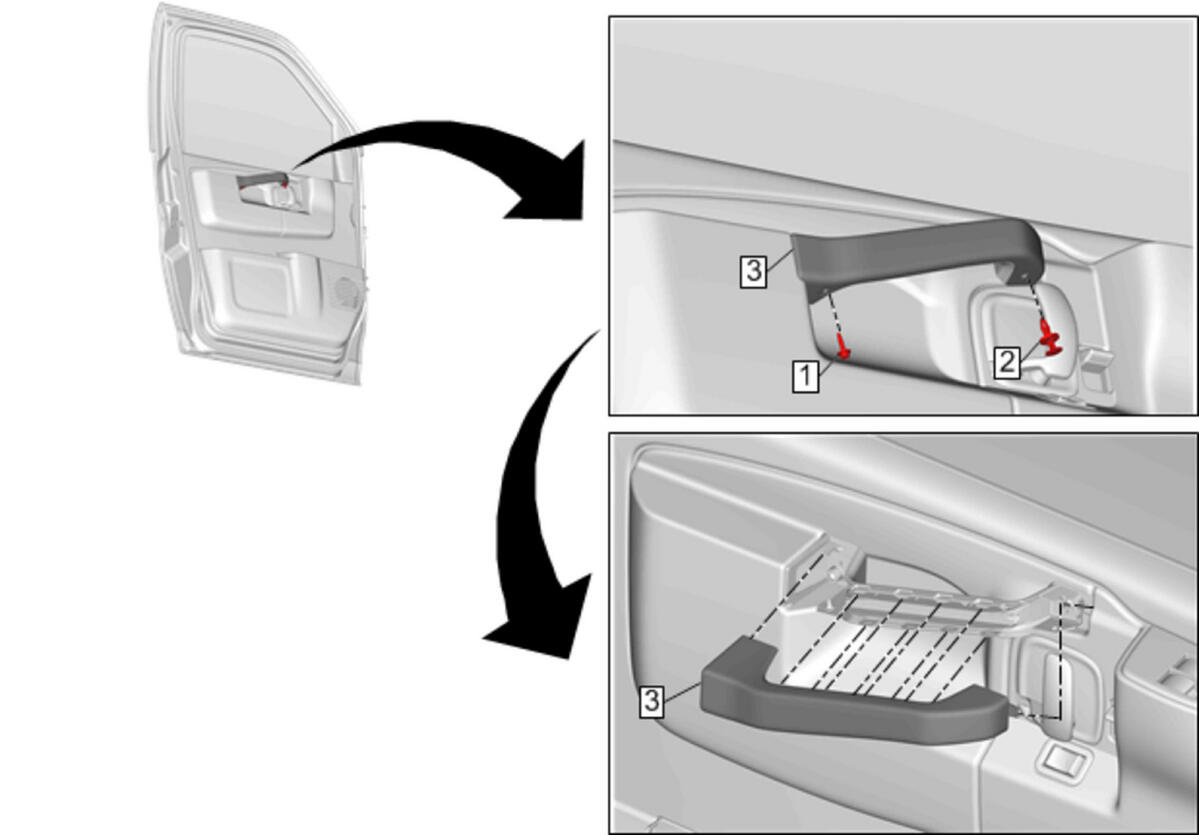

Callout	Component Name
1	Front Side Door Pull Handle Bolt CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Front Side Door Inside Handle Bezel Reinforcement Clip
3	Front Side Door Pull Handle Cover Procedure Use a small flat-bladed tool to carefully unlock and release the 9 integral retaining clips. Start the removal of the cover at the rear edge and work toward the front hook.

Callout

Component Name

Front Side Door Pull Handle Bolt

CAUTION:

Tighten
2.5 N.m (22 lb in)

Front Side Door Inside Handle Bezel Reinforcement Clip

Front Side Door Pull Handle Cover

Procedure

Use a small flat-bladed tool to carefully unlock and release the 9 integral retaining clips.
Start the removal of the cover at the rear edge and work toward the front hook.
