Front Side Door Front Garnish Molding Replacement
Courtesy of GENERAL MOTORS COMPANY

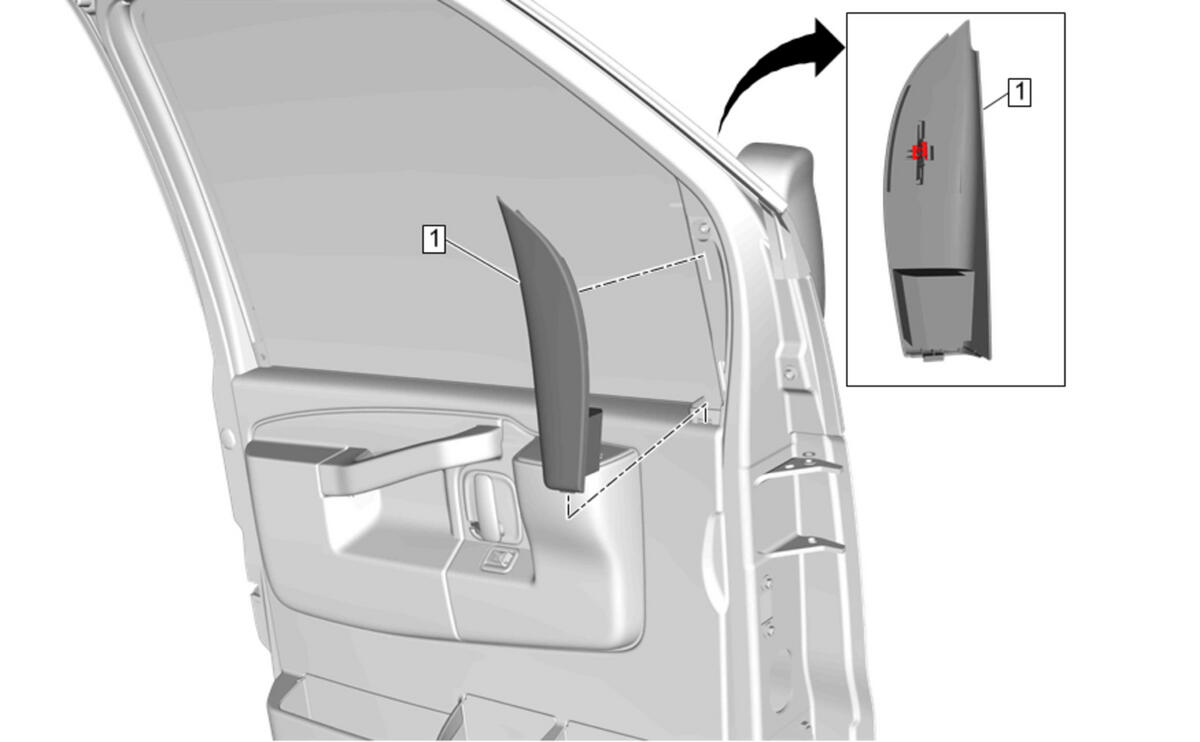

Callout
Component Name
1
Front Side Door Front Garnish Molding
Procedure
Use a plastic trim tool to disengage the retaining clip.
Lift the front door front garnish molding up to disengage the tab on the garnish molding from the slot on the door trim panel.
Ensure that the door weatherstrip is not trapped below the garnish molding once completely installed. Reposition the weatherstrip as necessary.
