Front Door Trim Plate Replacement

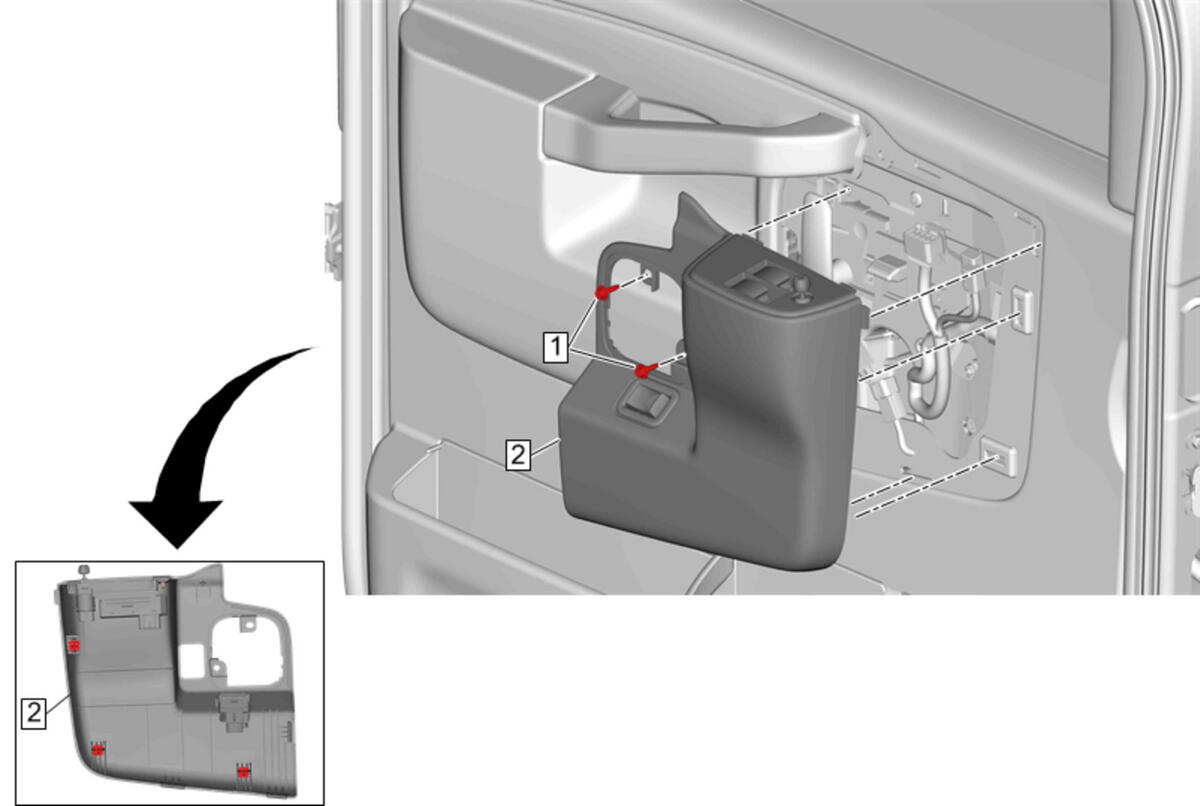

GM4847639Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Front Side Door Inside Handle Bezel Replacement
  2. { If equipped } Door Window Regulator Handle Replacement
1 Front Side Door Accessory Switch Mount Plate Bolt [2x]
CAUTION:

Refer to Fastener Caution .


Tighten
1.9 N.m (17 lb in)
2 Front Door Trim Plate

Procedure

  1. Using a flat-bladed plastic trim tool, start at the rear and swing out and rearward to unhook interlock tab on the front door trim plate from the door trim panel.
  2. Disconnect all electrical connectors.
  3. Transfer parts as necessary.
