Body Side Front Trim Panel Replacement - Left Side

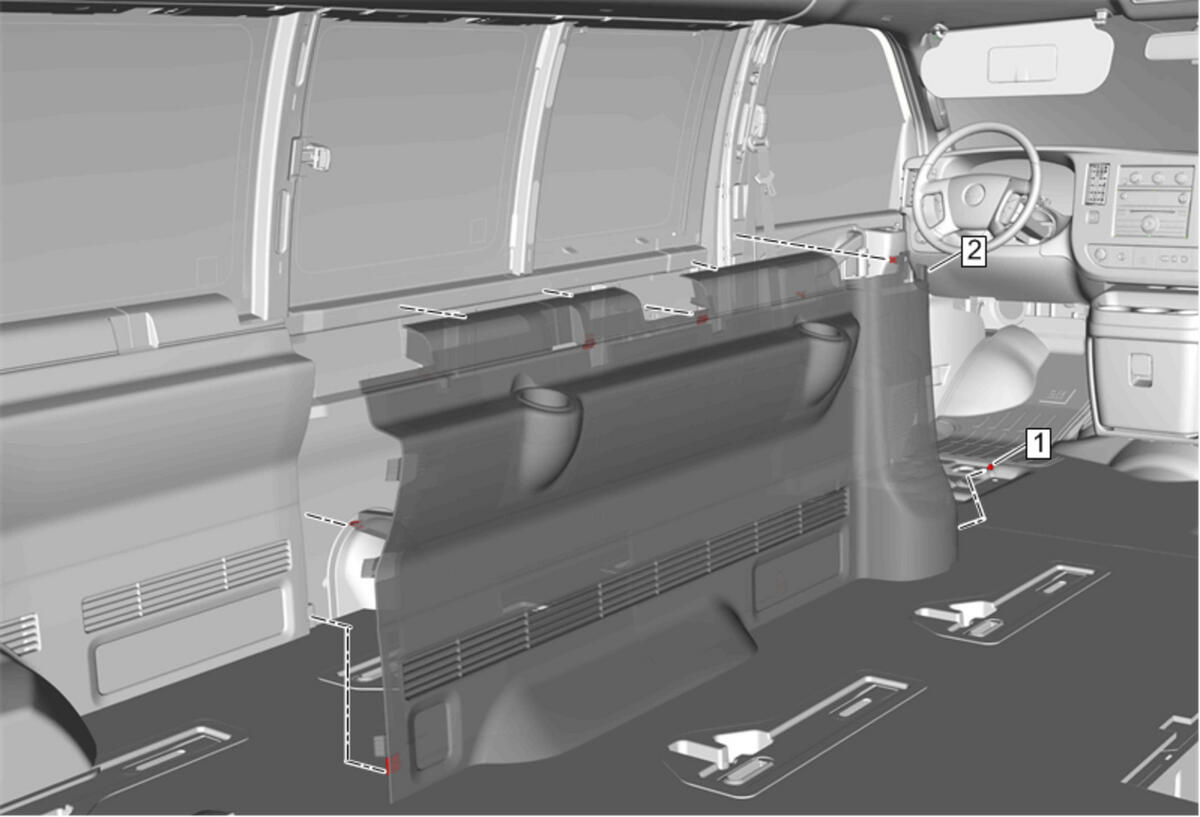

GM4855801Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Rear Bench Seat Removal and Installation (With Bench Seat) , or Rear Bench Seat Removal and Installation (With Split Bench)
  2. Upper Pillar Garnish Molding Replacement
  3. Body Side Rear Garnish Molding Replacement
1 Body Side Front Trim Panel Retainer
Procedure
Use a flat bladed plastic trim tool.
2 Body Side Front Trim Panel-Left Side

Procedure

  1. Use a flat bladed plastic trim tool.
  2. Grasp and gently pull inward and forward in order to disengage the retaining tabs.
  3. Ensure seat belts are properly seated in the guide slots prior to securing panel.
