Body Side Rear Garnish Molding Replacement

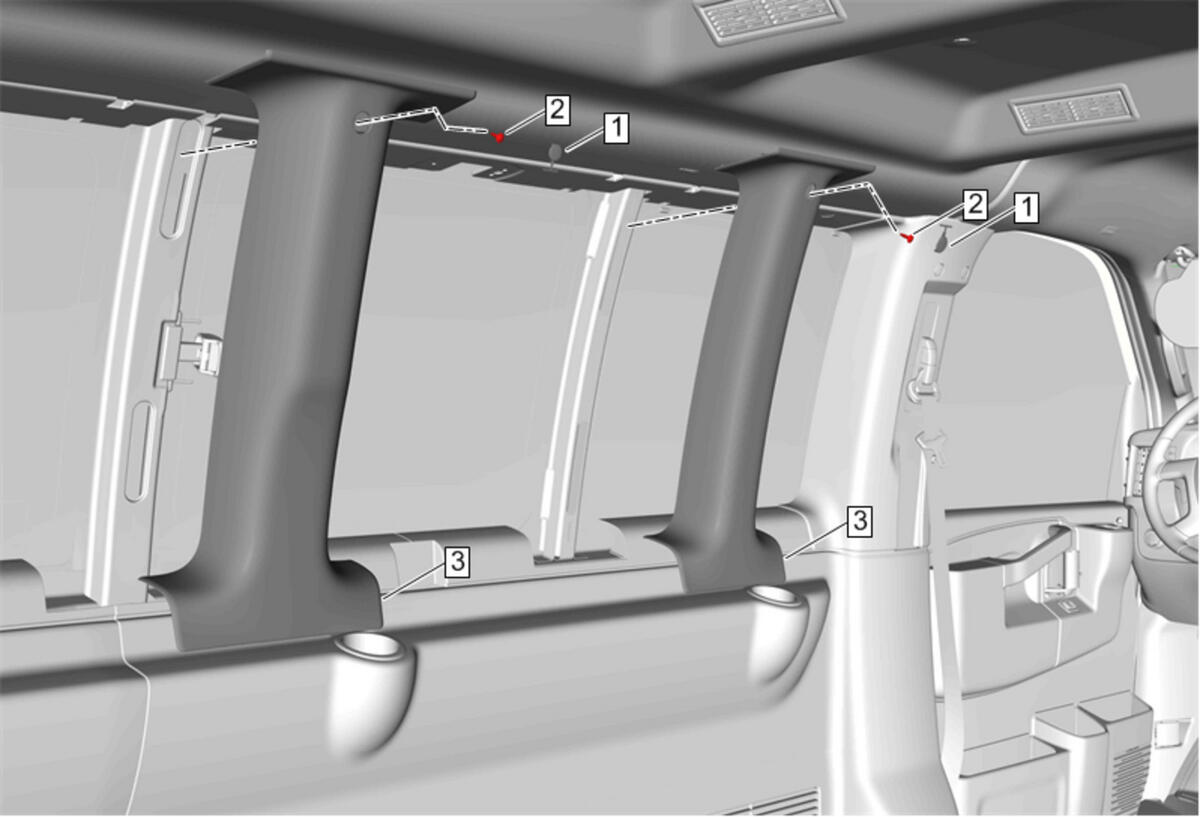

GM4859228Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Disable the SIR system. SIR Disabling and Enabling
1 Body Side Garnish Molding Cap [2x]
Procedure
Use a flat bladed plastic trim tool.
2 Body Side Garnish Molding Bolt [2x]
CAUTION:

Refer to Fastener Caution .


Tighten
2 N.m (18 lb in) N.m
3 Body Side Rear Garnish Molding

Procedure

  1. Use a flat bladed plastic trim tool.
  2. Grasp and gently pull inward in order to disengage the retaining clips.
  3. Enable the SIR System. SIR Disabling and Enabling
