Rear Bench Seat Removal and Installation (With Bench Seat)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Disconnect the seat belt.

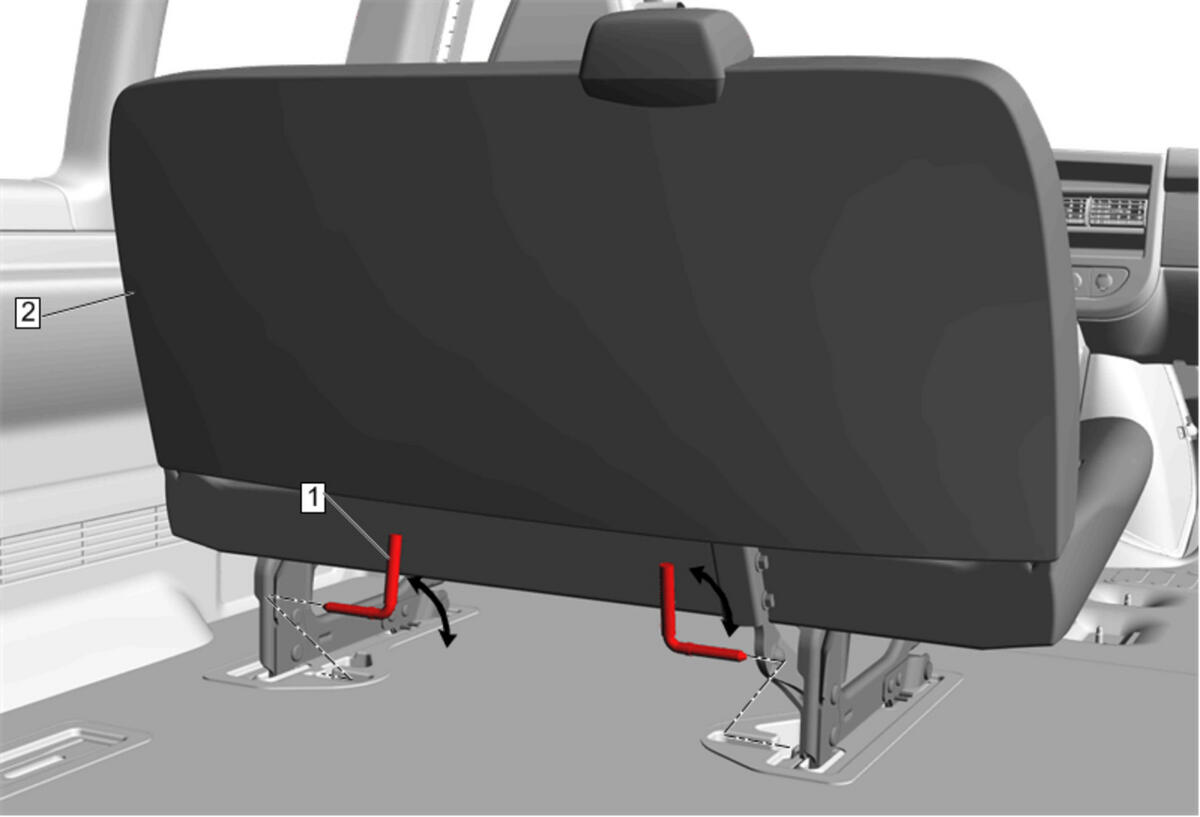

1	Seat Locking Pin [2x] Procedure  Pull the pin handle up to disengage the pin from the retaining clip and pull the pin out.
2	Rear Bench Seat Procedure  Pull the seat rearward and lift the seat from the floor rails.
