Removal Procedure

  1. Remove the intermediate side door trim panel. Intermediate Side Door Trim Panel Replacement
  2. Remove the hinged intermediate side window or the stationary side window. Body Side Window Replacement (Stationary)Body Side Window Replacement (Swing out)
  3. Remove the intermediate side door window weatherstrip. Intermediate Side Door Window Weatherstrip Replacement
  4. Remove the side rear door upper and lower door wedges from the door. Sliding Rear Side Door Locator and Door Side Wedge Replacement (Locator)
  5. Remove the upper and the lower door latches. Rear Side Door Latch Replacement - Upper , and Rear Side Door Lower Latch Replacement
  6. Remove the latch handle. Rear Side Door Latch Control Replacement
  7. Remove the latch striker. Rear Side Door Latch Striker Replacement - Lower

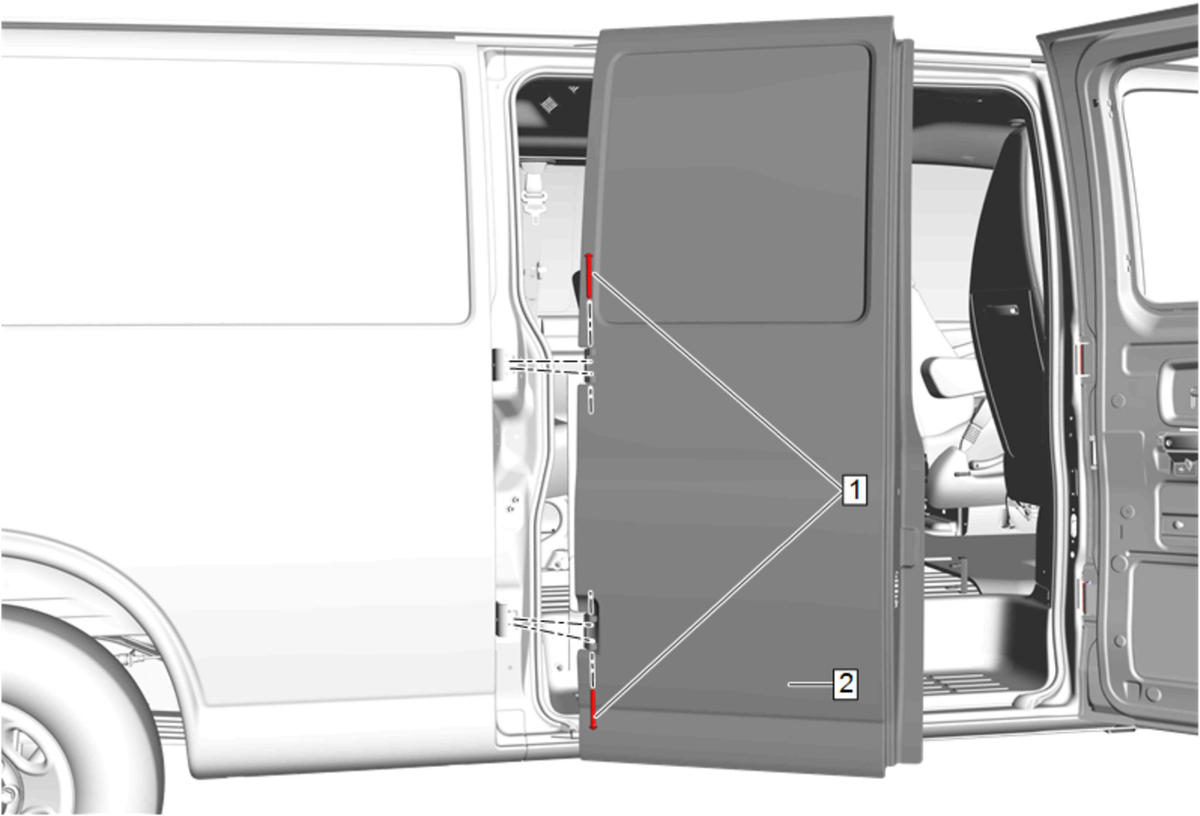

  8. GM5217318Courtesy of GENERAL MOTORS COMPANY

    Remove the intermediate side door hinge pins (1) using the J 41226  door hinge pin drillout kit and the J 41226-50  door hinge pin adapter kit.

  9. Remove the intermediate side door (2) from the vehicle.
