Rear Side Door Latch Replacement - Upper

Courtesy of GENERAL MOTORS COMPANY

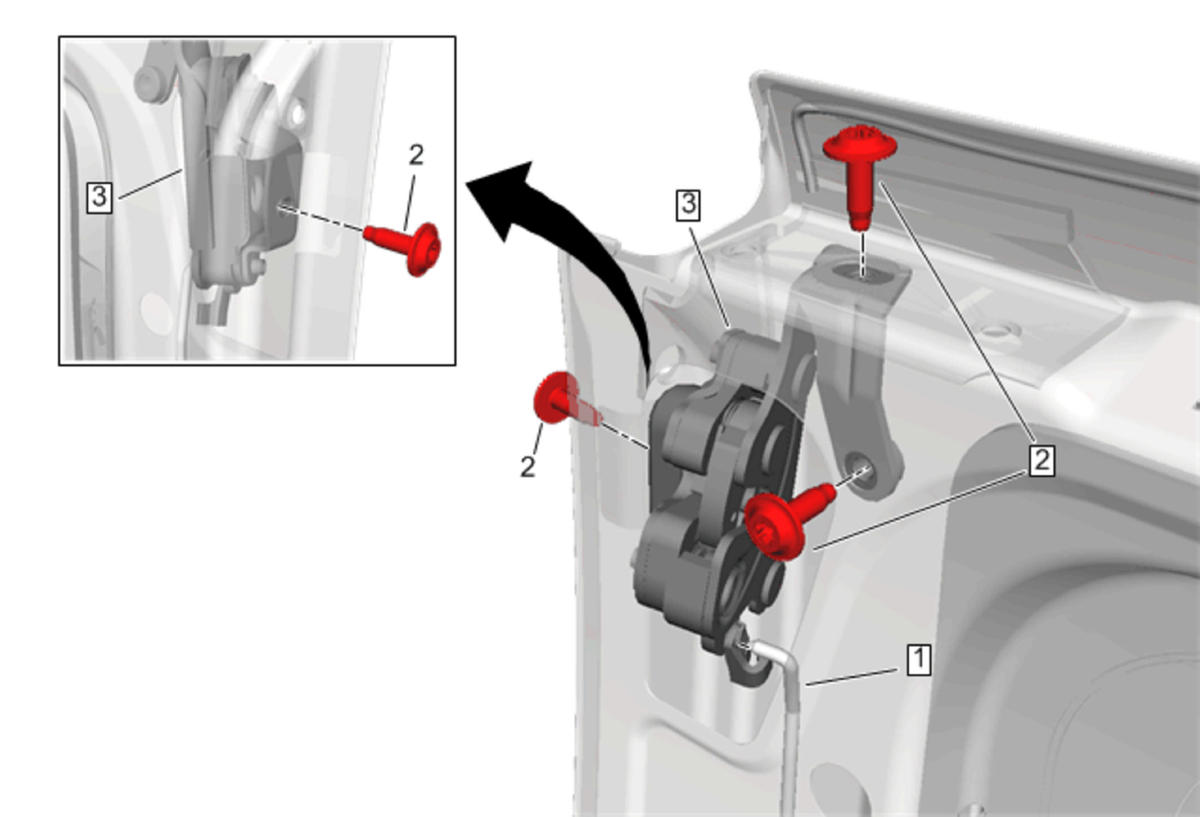

Callout	Component Name
Preliminary Procedures Reposition the rear side door weatherstrip. Rear Side Door Weatherstrip Replacement Remove rear side 60/40 door trim panel - right side (E24, 40 door). Rear Side 60/40 Door Trim Panel Replacement - Right Side (E24, 40 Door) , or Rear Side 60/40 Door Trim Panel Replacement - Right Side (E24, 60 Door)
1	Rear Side Door Latch Rod
2	Rear Side Door Latch Bolt[3x] CAUTION: Refer to Fastener Caution . Tighten 10 N.m (88 lb in)
3	Rear Side Door Upper Latch
