Rear Side Door Latch Striker Replacement - Lower

Courtesy of GENERAL MOTORS COMPANY

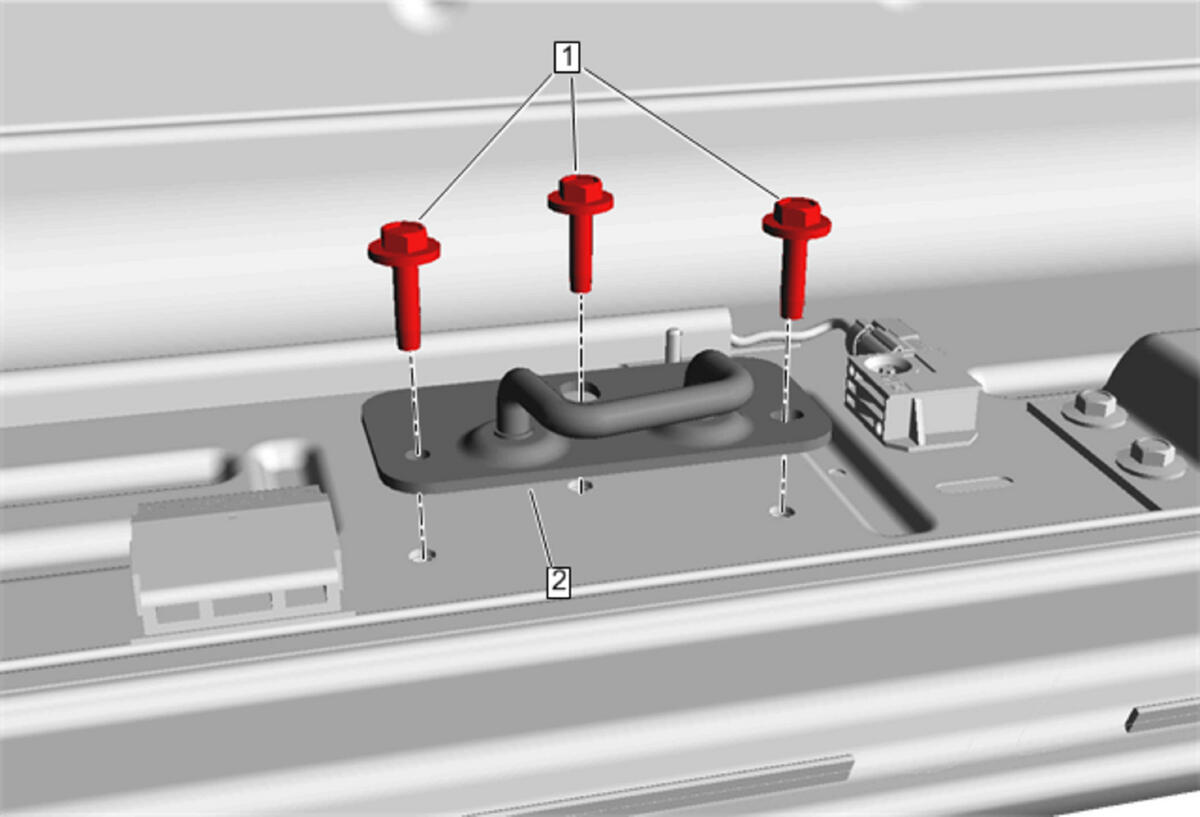

Callout	Component Name
Preliminary Procedure  Rear Side Door Step Mat Replacement
1	Rear Side Door Latch Striker Bolt [3x] CAUTION: Refer to Fastener Caution . Tighten  10 N.m (89 lb in)
2	Rear Side Door Latch Striker - Lower
