Intermediate Side Door Trim Panel Replacement

Courtesy of GENERAL MOTORS COMPANY

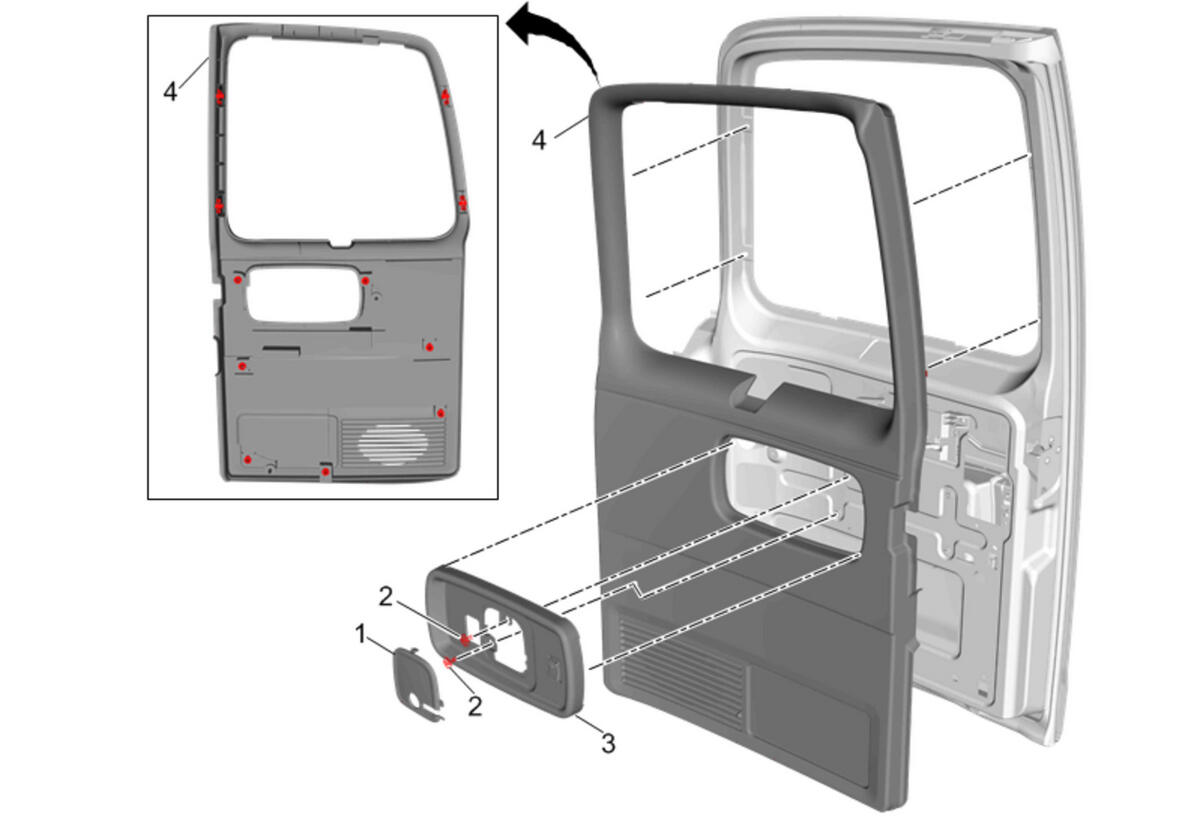

Callout	Component Name
Preliminary Procedure Rear Side Door Pull Handle Replacement
1	Rear Side Door Inside Handle Bolt Cap Procedure Use a plastic trim tool to disengage the integral retaining tabs on the rear side door inside handle bolt cap from the rear door trim plate.
2	Rear Door Inside Handle Bezel Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten 1.9 N.m (17 lb in)
3	Rear Side Door Trim Plate Procedure Using a flat-bladed plastic trim tool, partially remove the trim plate. { If equipped }Disconnect the electrical connector. Transfer parts as necessary.
4	Intermediate Side Door Trim Panel Procedure Use an appropriate trim tool to carefully disengage the retainers around the outside edges of the lower portion of the door trim panel. Use a long flat bladed tool to carefully release the door trim panel out of the retainers around the window opening. Transfer components as necessary.
