Removal Procedure

  1. Body Hinge Pillar Trim Panel - Remove - Body Hinge Pillar Trim Panel Replacement
  2. Upper Pillar Garnish Molding - Remove - Upper Pillar Garnish Molding Replacement
  3. Lower Pillar Garnish Molding - Remove - Lower Pillar Garnish Molding Replacement
  4. Front Side Door Step Mat - Remove - Front Side Door Step Mat Replacement

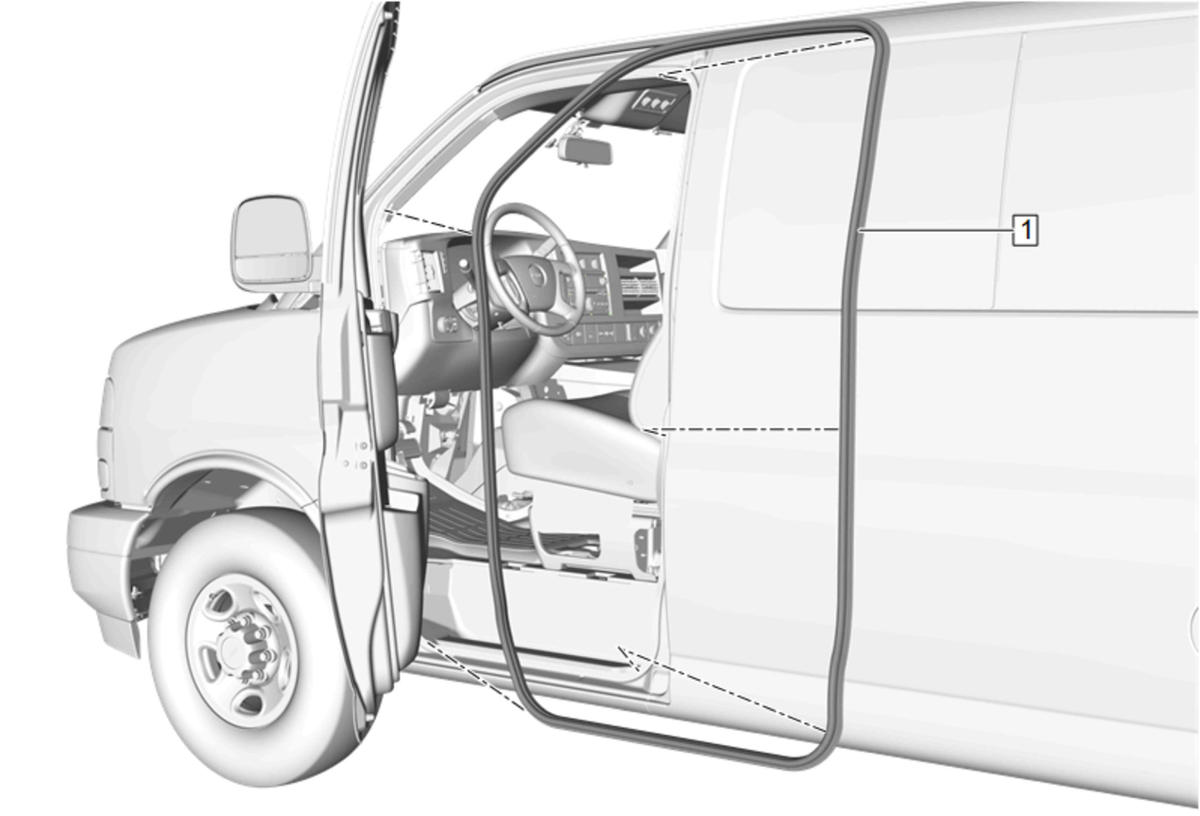

  5. GM5216421Courtesy of GENERAL MOTORS COMPANY

    Remove the front door opening weatherstrip (1) from the front door opening pinch-weld flange.
