Front Side Door Step Mat Replacement

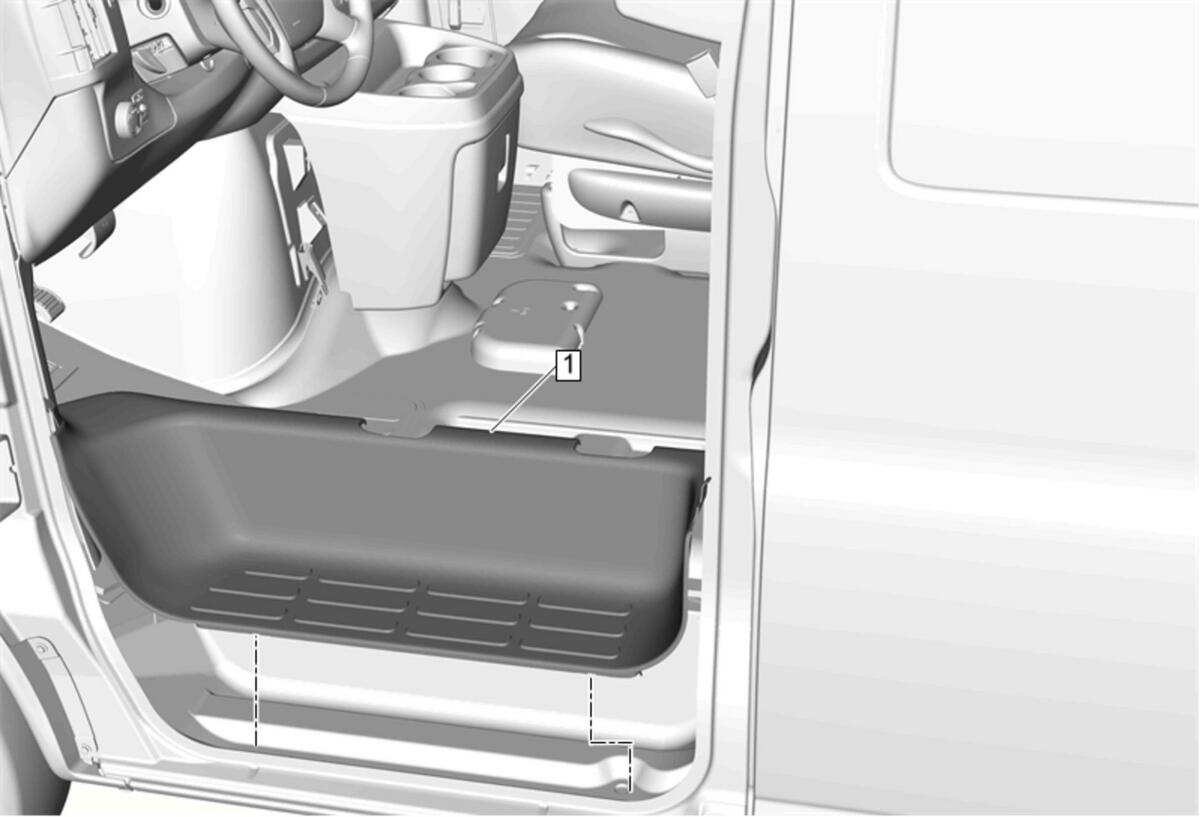

GM4854619Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Body Hinge Pillar Trim Panel Replacement
  2. Lower Pillar Garnish Molding Replacement
1 Front Side Door Step Mat

Procedure

  1. Grasp and gently pull up on the front side door step mat in order to release the retaining clips.
  2. Disconnect electrical connections, if applicable.
