Lower Pillar Garnish Molding Replacement

Courtesy of GENERAL MOTORS COMPANY

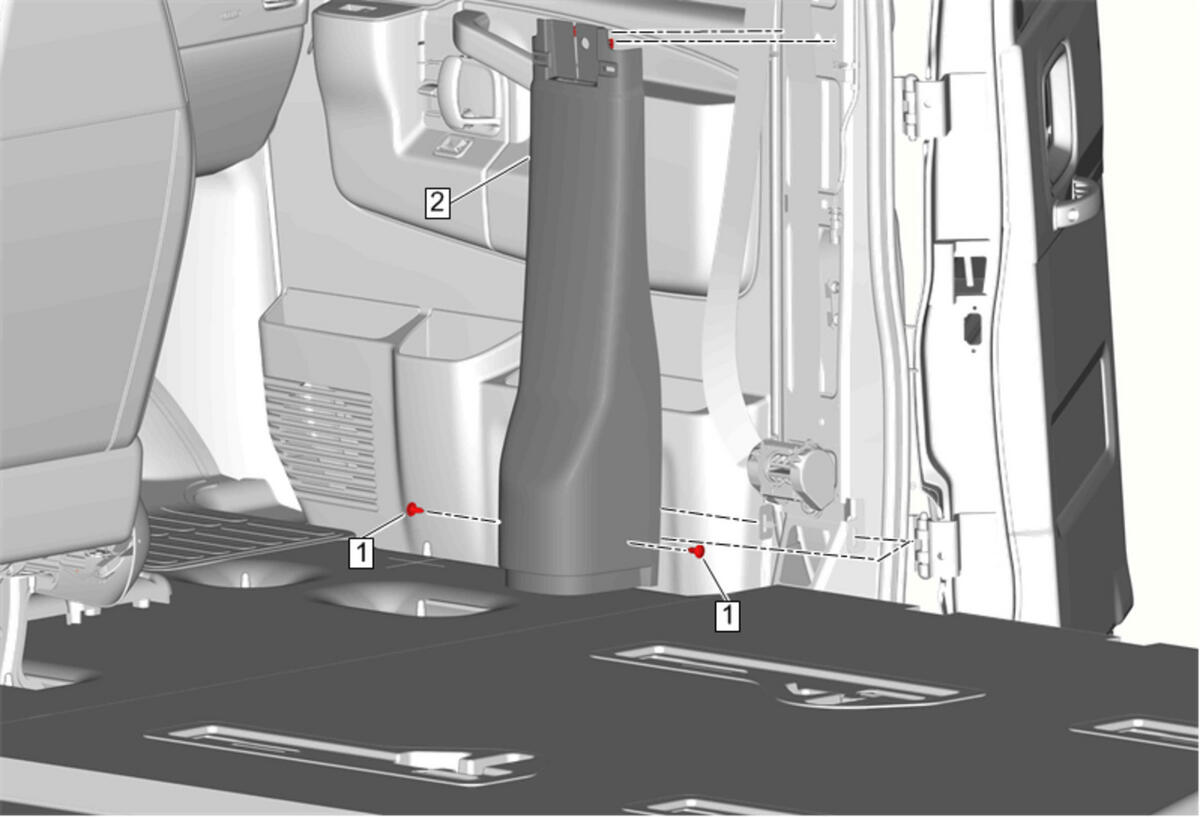

Callout	Component Name
Preliminary Procedures Upper Pillar Garnish Molding Replacement Rear Side Door Step Mat Replacement
1	Center Pillar Lower Garnish Molding Retainer [2x] Procedure Use a flat bladed plastic trim tool.
2	Lower Pillar Garnish Molding Procedure Grasp and gently pull back on the garnish molding to release the upper retaining clips.

Callout

Component Name

Preliminary Procedures

Center Pillar Lower Garnish Molding Retainer [2x]
Procedure
Use a flat bladed plastic trim tool.

Lower Pillar Garnish Molding
Procedure
Grasp and gently pull back on the garnish molding to release the upper retaining clips.
