Front Wheelhouse Liner Replacement (Left Side)

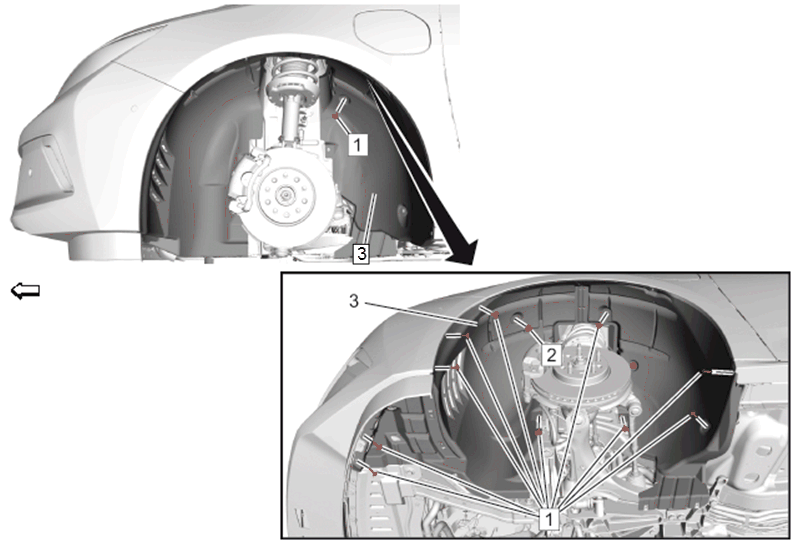

GM4091152Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Tire and Wheel Removal and Installation
  2. Left Side Front Compartment Splash Shield Replacement
  3. Right Side Front Compartment Air Deflector Replacement
  4. Front Tire Front Air Deflector Replacement
1 Front Wheelhouse Liner Bolt [10x]
CAUTION:

Fastener Caution


Tighten
2.5 N.m (22 lb in)
2 Front Wheelhouse Liner Retainer
3 Front Wheelhouse Liner
