Front Compartment Splash Shield Replacement

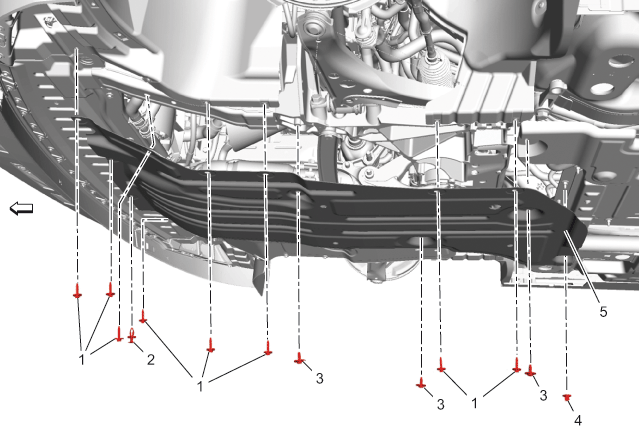

| Callout | Component Name |
|---|---|
| Preliminary Procedure Lifting and Jacking the Vehicle |
|
| 1 | Front Compartment Splash Shield Bolt [8x]
CAUTION:
Tighten 2.5 N.m (22 lb in) |
| 2 | Front Compartment Splash Shield Retainer |
| 3 | Front Compartment Splash Shield Bolt [3x] Tighten 7 N.m (62 lb in) |
| 4 | Front Compartment Splash Shield Plastic Nut Tighten 3 N.m (27 lb in) |
| 5 | Front Compartment Splash Shield |
