Front Compartment Air Deflector Replacement

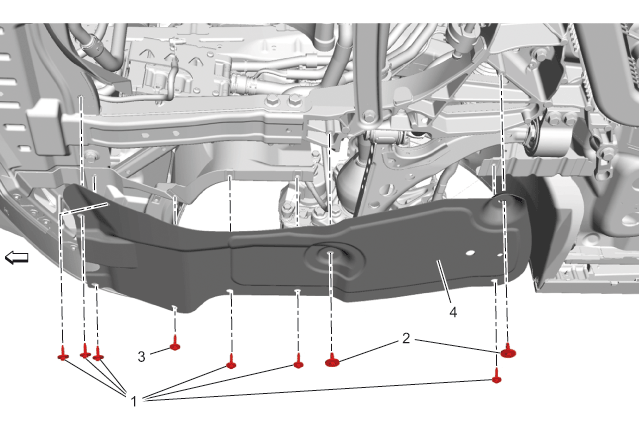

| Callout | Component Name |
|---|---|
| Preliminary Procedure Lifting and Jacking the Vehicle |
|
| 1 | Front Compartment Air Deflector Fastener [6x]
CAUTION:
Tighten 2.5 N.m (22 lb in) |
| 2 | Front Compartment Air Deflector Fastener [2x] Tighten 7 N.m (62 lb in) |
| 3 | Front Compartment Air Deflector Bolt Tighten 3 N.m (27 lb in) |
| 4 | Front Compartment Air Deflector Procedure Slide the front compartment air deflector from in between the front tire front air deflector and the wheelhouse liner. |
