Front Tire Front Air Deflector Replacement

Courtesy of GENERAL MOTORS COMPANY

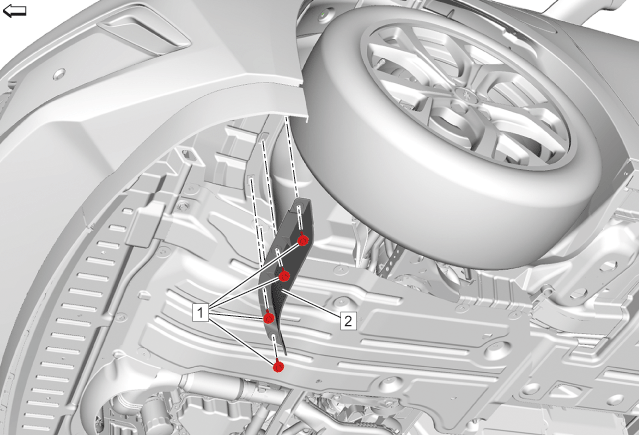

Callout	Component Name
Preliminary Procedure  Lifting and Jacking the Vehicle
1	Front Tire Front Air Deflector Bolt [4x] CAUTION: Fastener Caution Tighten  2.5N.m (22 lb in)
2	Front Tire Front Air Deflector
