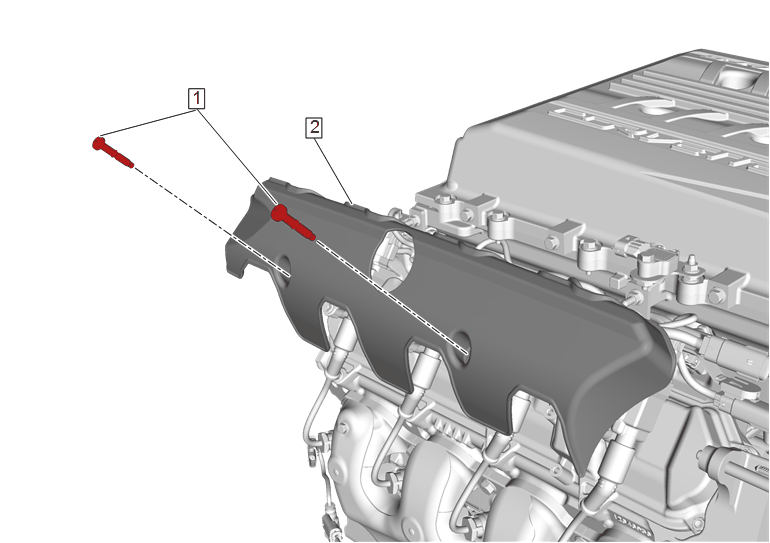

Valve Rocker Arm Cover Insulator Replacement - Right Side (LT5)

GM4919394

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedures

Remove the right side upper intake manifold brackets. Upper Intake Manifold Bracket Replacement
Evaporative Emission Canister Purge Pipe Replacement .
Positive Crankcase Ventilation Hose/Pipe/Tube Replacement (LT5 - LH Rocker Arm Cover to Oil Tank) Positive Crankcase Ventilation Hose/Pipe/Tube Replacement (LT5 - RH Rocker Arm Cover to Oil Tank) Positive Crankcase Ventilation Hose/Pipe/Tube Replacement (LT5 - Air Duct To Oil Tank) .

1

Valve Rocker Arm Cover Insulator Fasteners [2x]

CAUTION:

Refer to Fastener Caution .

Tighten
9 N.m (80 lb in)

2

Valve Rocker Arm Cover Insulator
