Positive Crankcase Ventilation Hose/Pipe/Tube Replacement (LT5 - LH Rocker Arm Cover to Oil Tank)

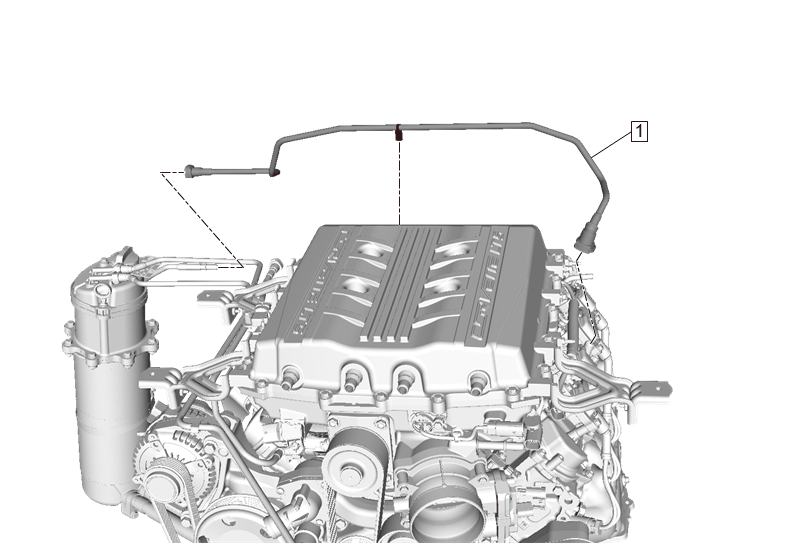

GM4900513Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Intake Manifold Cover Replacement (LT5) .
1 Positive Crankcase Ventilation Tube

Procedure

  1. Detach the tube retainer from the charge air cooler cover
  2. Remove tube from the oil tank and the rocker arm cover. Plastic Collar Quick Connect Fitting Service
