Upper Intake Manifold Bracket Replacement

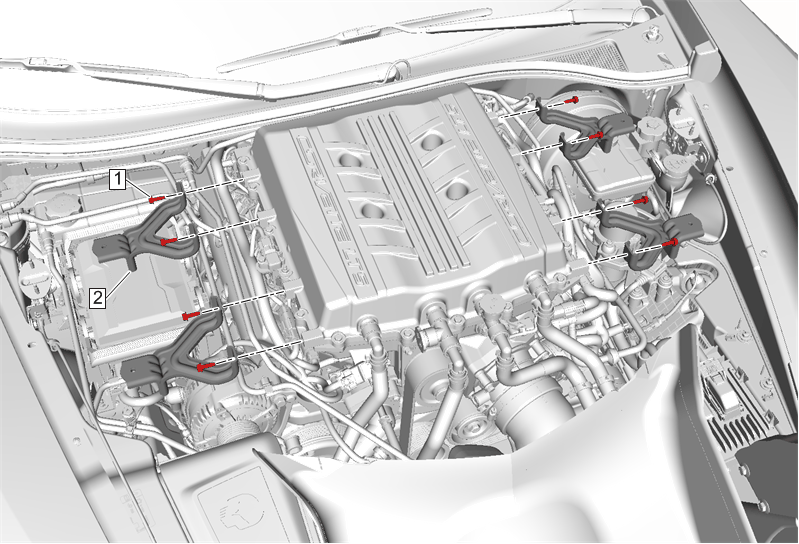

GM4900258Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Intake Manifold Cover Replacement (LT1 - Right) Intake Manifold Cover Replacement (LT1 - Left) Intake Manifold Cover Replacement (LT5)
1 Upper Intake Manifold Cover Bracket Bolt [8x]
CAUTION:

Refer to Fastener Caution .


Tighten
9 N.m (80 lb in)
2 Upper Intake Manifold Bracket [4x]
