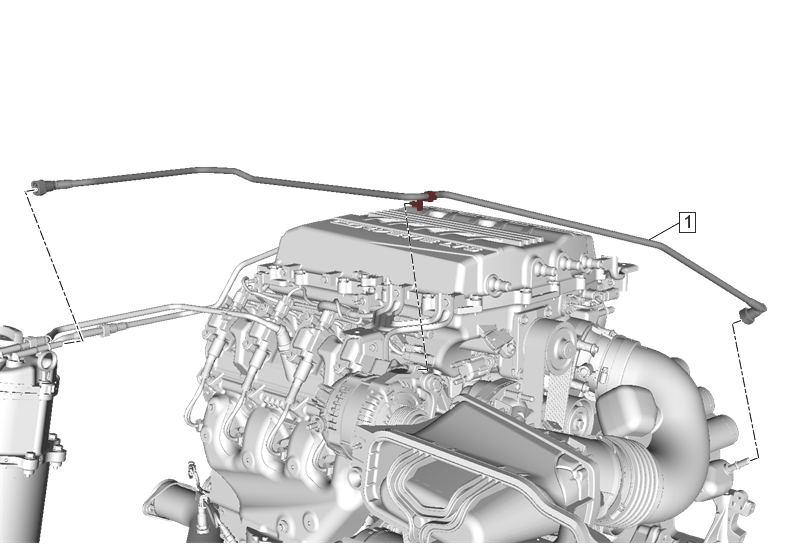

Positive Crankcase Ventilation Hose/Pipe/Tube Replacement (LT5 - Air Duct To Oil Tank)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Intake Manifold Cover Replacement (LT5) .
1	Positive Crankcase Ventilation Tube Procedure Detach the tube retainer from the generator. Remove the tube from the oil tank and air cleaner outlet duct. Plastic Collar Quick Connect Fitting Service

Callout

Component Name

Positive Crankcase Ventilation Tube

Procedure

Detach the tube retainer from the generator.
Remove the tube from the oil tank and air cleaner outlet duct. Plastic Collar Quick Connect Fitting Service
