Valve Rocker Arm Cover Insulator Replacement - Left Side (LT5)

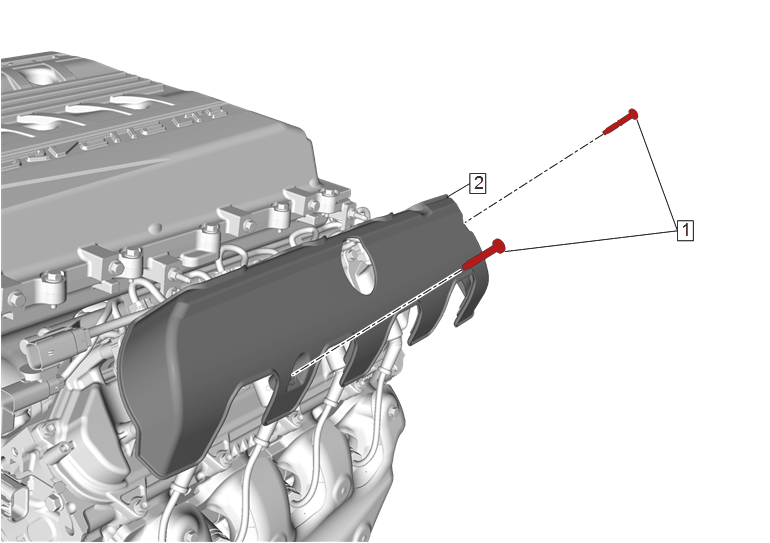

GM4918827Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Positive Crankcase Ventilation Hose/Pipe/Tube Replacement (LT5 - LH Rocker Arm Cover to Oil Tank) Positive Crankcase Ventilation Hose/Pipe/Tube Replacement (LT5 - RH Rocker Arm Cover to Oil Tank) Positive Crankcase Ventilation Hose/Pipe/Tube Replacement (LT5 - Air Duct To Oil Tank)
  2. Remove the left side upper intake manifold brackets. Upper Intake Manifold Bracket Replacement
  3. Disconnect the fuel feed hose at the fuel feed pipe and reposition the fuel feed hose. Metal Collar Quick Connect Fitting Service
1 Valve Rocker Arm Cover Insulator Fastener [2x]
CAUTION:

Refer to Fastener Caution .


Tighten
9 N.m (80 lb in)
2 Valve Rocker Arm Cover Insulator
