Quarter Lower Rear Trim Panel Replacement (Right Side)

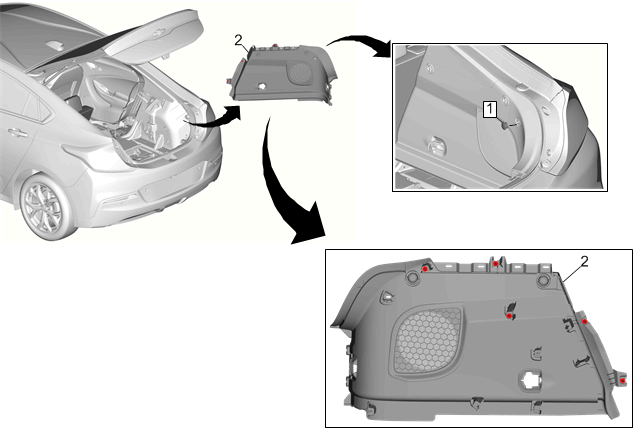

Callout	Component Name
Preliminary Procedures Luggage Shade Replacement Rear End Trim Finish Panel Replacement Rear Seat Back Bolster Replacement Body Lock Pillar Trim Panel Replacement Cargo Tie Down Loop Trim Cover Replacement
1	Convenience Net Retainer CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Quarter Lower Rear Trim Panel Procedure Use a flat-bladed plastic trim tool to release the quarter lower rear trim panel from the rear wheelhouse assembly and the body side inner assembly.

Callout

Component Name

Preliminary Procedures

Luggage Shade Replacement
Rear End Trim Finish Panel Replacement
Rear Seat Back Bolster Replacement
Body Lock Pillar Trim Panel Replacement
Cargo Tie Down Loop Trim Cover Replacement

Convenience Net Retainer

CAUTION:

Refer to Fastener Caution .

Tighten
2.5 N.m (22 lb in)

Quarter Lower Rear Trim Panel
Procedure
Use a flat-bladed plastic trim tool to release the quarter lower rear trim panel from the rear wheelhouse assembly and the body side inner assembly.
