Rear Seat Back Bolster Replacement

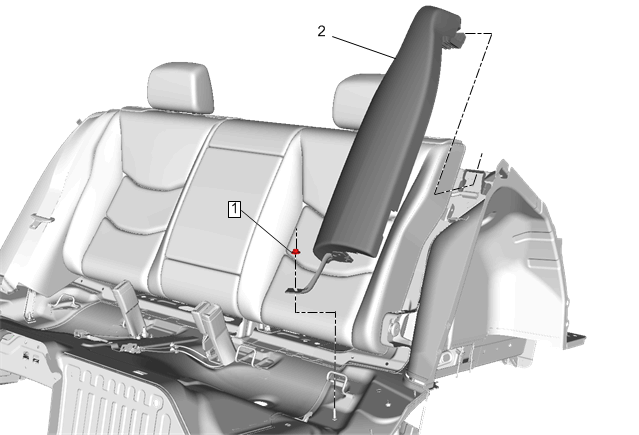

Callout	Component Name
WARNING: Refer to SIR Warning . Preliminary Procedures Disable the SIR system. SIR Disabling and Enabling Rear Seat Cushion Removal and Installation
1	Rear Seat Back Bolster Fastener CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Rear Seat Back Bolster Procedure Disconnect the electrical connector. Enable the SIR System. SIR Disabling and Enabling

Callout

Component Name

WARNING:

Preliminary Procedures

Rear Seat Back Bolster Fastener

CAUTION:

Tighten
9 N.m (80 lb in)

Rear Seat Back Bolster

Procedure
