Body Lock Pillar Trim Panel Replacement

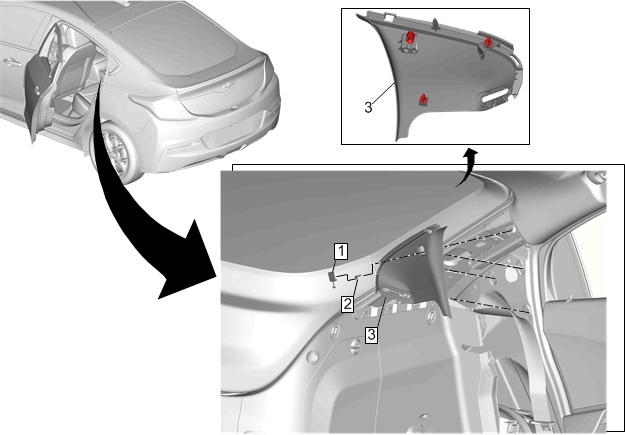

Callout	Component Name
Preliminary Procedures Body Lock Pillar Upper Trim Panel Replacement Rear Seat Back Bolster Replacement
1	Airbag Name Plate
2	Body Lock Pillar Lower Trim Panel Fastener CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
3	Body Lock Pillar Trim Panel Procedure Use a flat bladed plastic trim tool. Pull outward to release integral clips. Release the seat belt bezel from the body lock trim panel and feed the seat belt through the cut out in the body lock pillar trim panel. Ensure that the seat belt bezel is positioned forward of the cut out on the panel prior to the seat belt webbing being inserted and routed.
