Rear End Trim Finish Panel Replacement

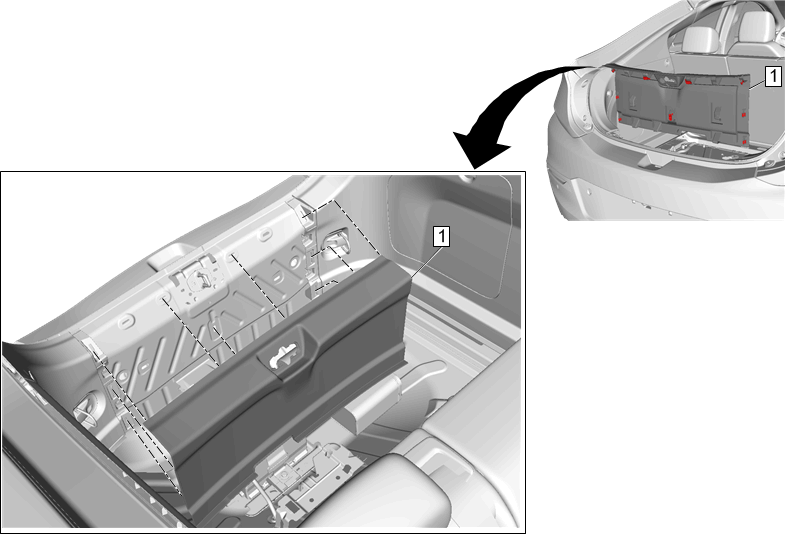

Callout
Component Name
Preliminary Procedures
Rear End Trim Finish Panel Opening Cover Replacement
Rear Compartment Floor Stowage Trim Compartment Replacement
1
Rear End Trim Finish Panel
Procedure
Grasp and gently pull up on the rear end trim finish panel in order to release the integral retaining clips.
