Instrument Panel Lower Center Trim Panel Replacement (Lower)

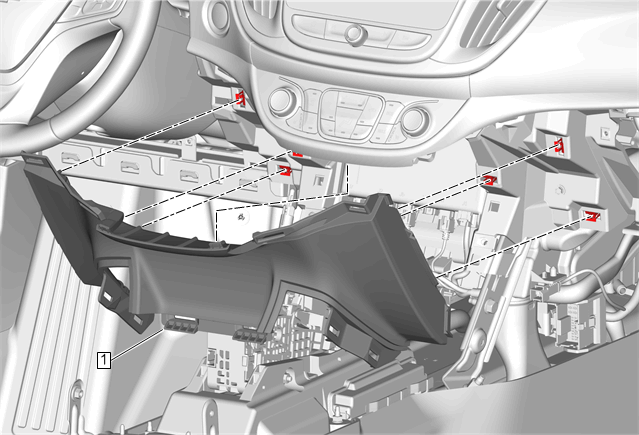

GM4163552
Callout Component Name

Preliminary Procedure

  1. Front Floor Console Replacement
  2. Instrument Panel Knee Bolster Replacement
  3. Instrument Panel Compartment Replacement
1 Instrument Panel Lower Center Trim Panel

Procedure

  1. Use a flat bladed plastic trim tool.
  2. First release the retainers from the bottom and pull the panel down to disengage the top two tabs.
  3. Disconnect electrical connections, if applicable.
